Feature:

1. Using high-quality materials, durable

2. Reliable function and high sensitivity

3. Low energy consumption, very energy saving

4. It has the anti-interference ability to block the wrong switch of the photoelectric power source

5. Wide range of applications

12V

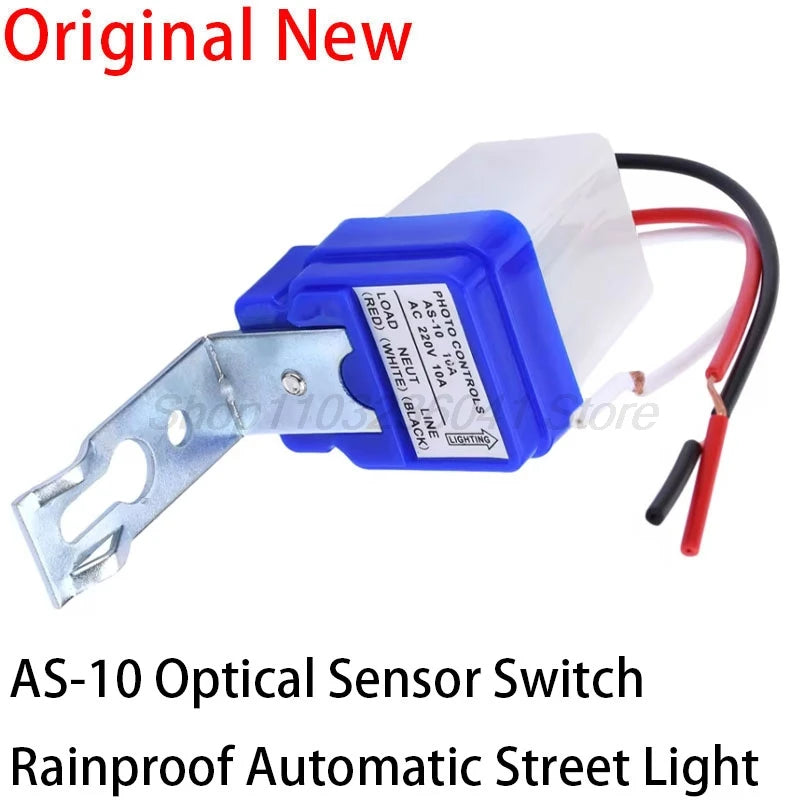

Model:AS-10

Input Voltage: DC or AC 12V

Max Load Current: 10A

Size:(approx)5 x 4.2 x3.5cm/1.96"x1.65"x1.37"

Frequency:50-60Hz

220V

Voltage: AC 220V

Frequency: 50-60Hz

current: 10A

Ambient temp: -20 °C to +50 °C

Power consumption: Max 2.0W

Operating lllumination:

Turn-ON Less 30Lus

Turn-off Less 150Lus

24V

Model:AS-10

Input Voltage: DC or AC 24V

Max Load Current: 10A

Size:(approx)5 x 4.2 x3.5cm/1.96"x1.65"x1.37"

Frequency:50-60Hz

Working principle and structure

The circuit is equipped with a delay circuit, which has the anti-interference ability to prevent accidental lightning or manual torches, automobiles, and other lights from irradiating the photoelectric head, and falling leaves flying low to temporarily block the wrong switching of the photoelectric power source.

The street light automatic switch is composed of a power-off conversion device, that is, a power-off switch head integrated block, electronic components, and an executive relay.

During the day, the light is strong, and the current of the photosensitive element increases, so that the relay of the integrated circuit is released, and the street light does not light up. When it gets dark in the evening to a certain degree, due to the weakening of the light, the voltage generated by the photosensitive element is low, and the relay pulls in the street light until the light is turned on. In the morning of the next day, the integrated trigger of light enhancement will automatically act again, and the street light will go out.

Installation Precautions

1. Do not install the secondary device in a particularly dark place during the day or a place where it is directly irradiated by normally closed lights.

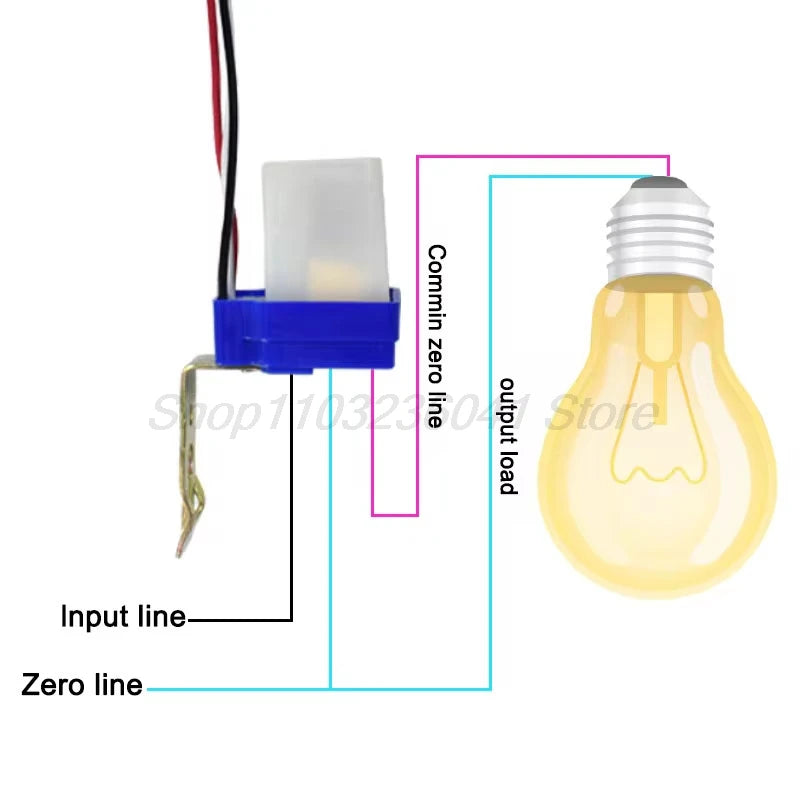

2. Automatically switch the white wire and the black wire to the power supply, and the white wire and the red wire to the load.
