What is a self generating product?

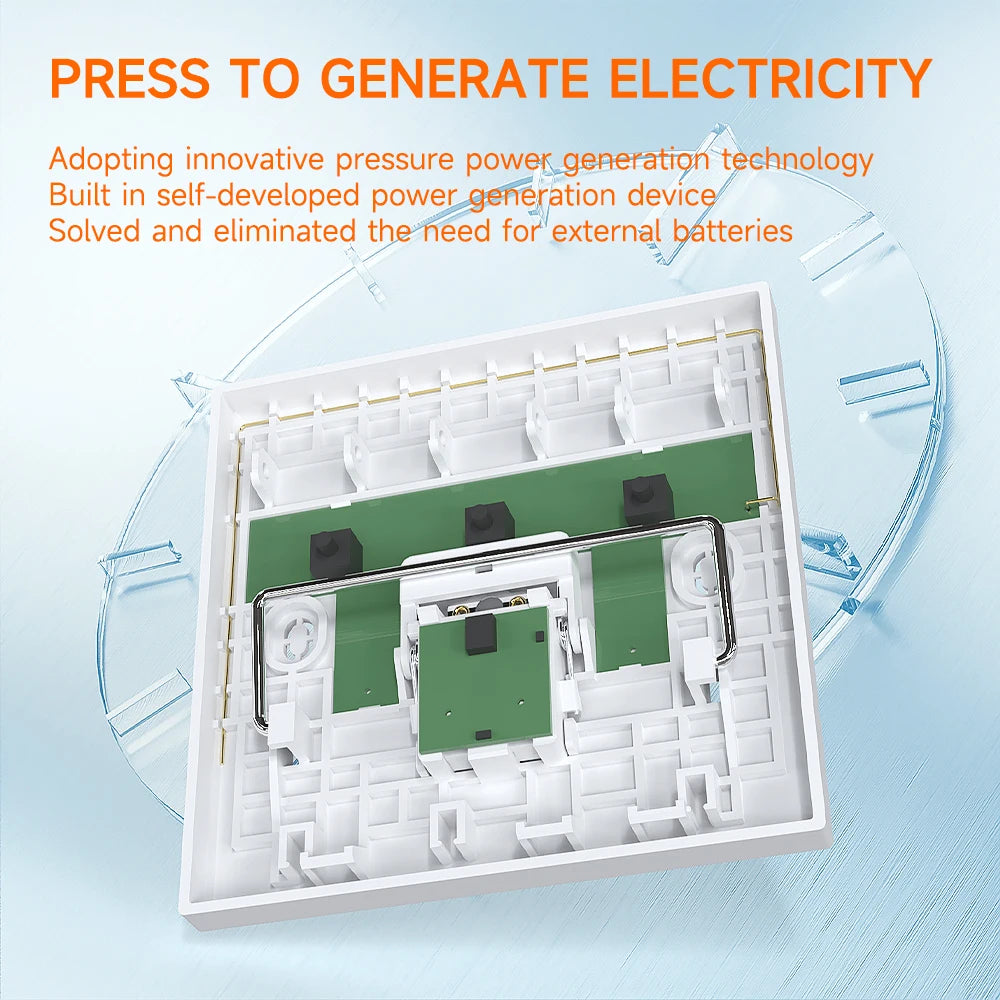

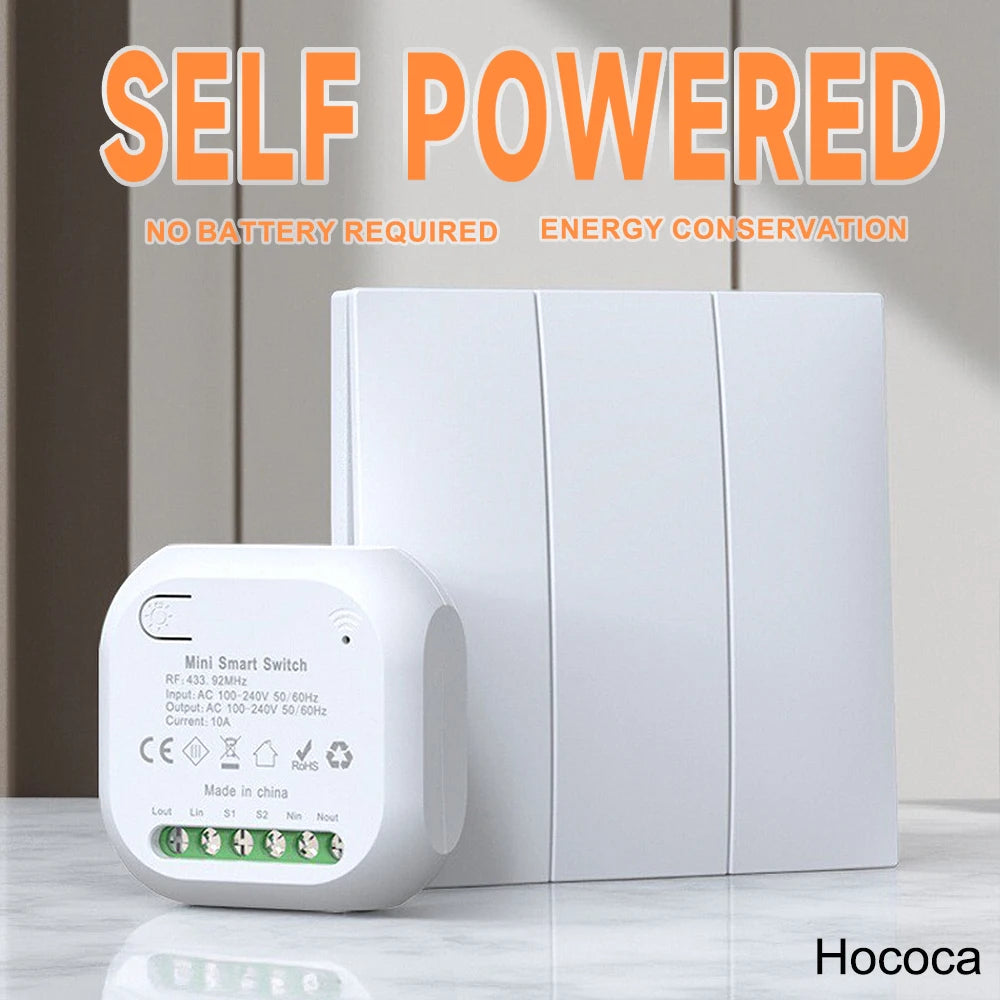

Self generating products are devices that can generate electricity on their own, mainly used for transmitters such as doorbell buttons and switch panels (i.e. buttons). They are equipped with miniature power generation modules that do not require batteries or charging during use. By pressing the iron sheet to cut the magnetic field, it generates electrical energy and sends out signals, avoiding the trouble of battery replacement and the bad situation of battery leakage. Although they are a bit expensive, they can help you reduce a lot of trouble and are also environmentally friendly!

Descript:

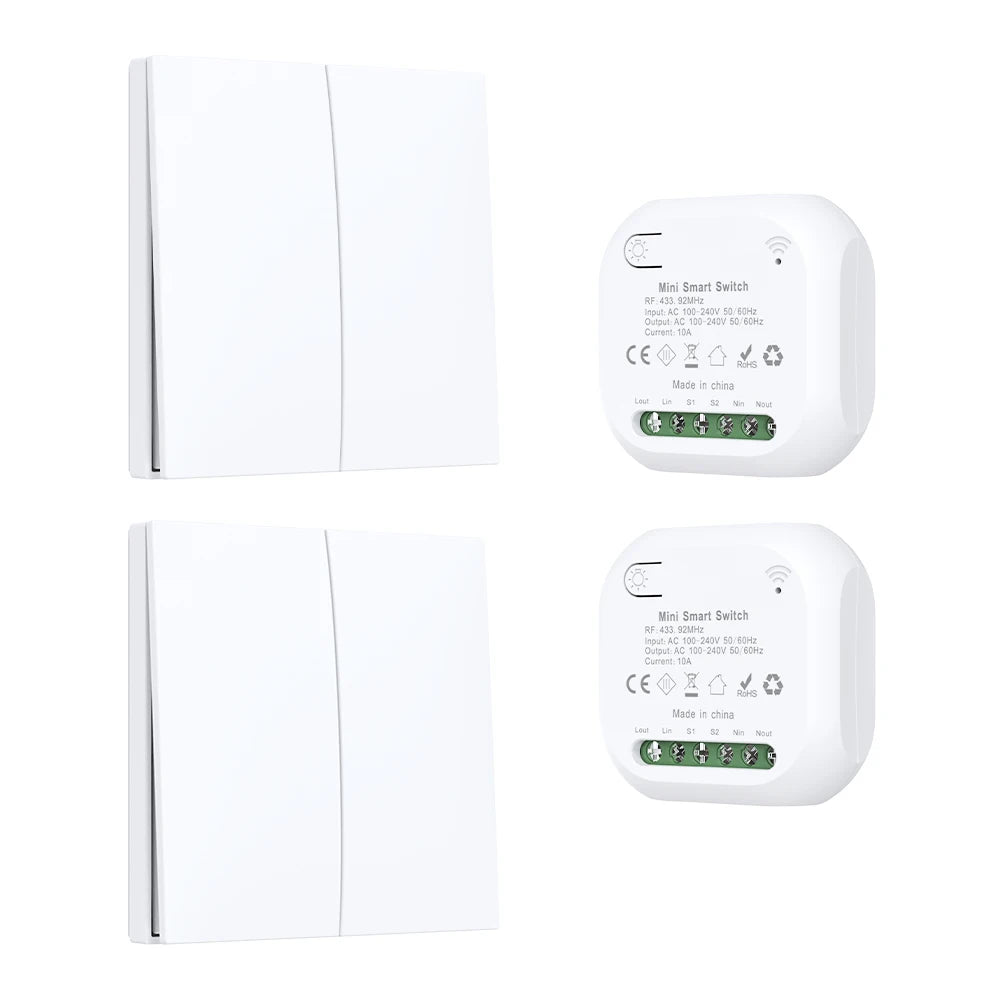

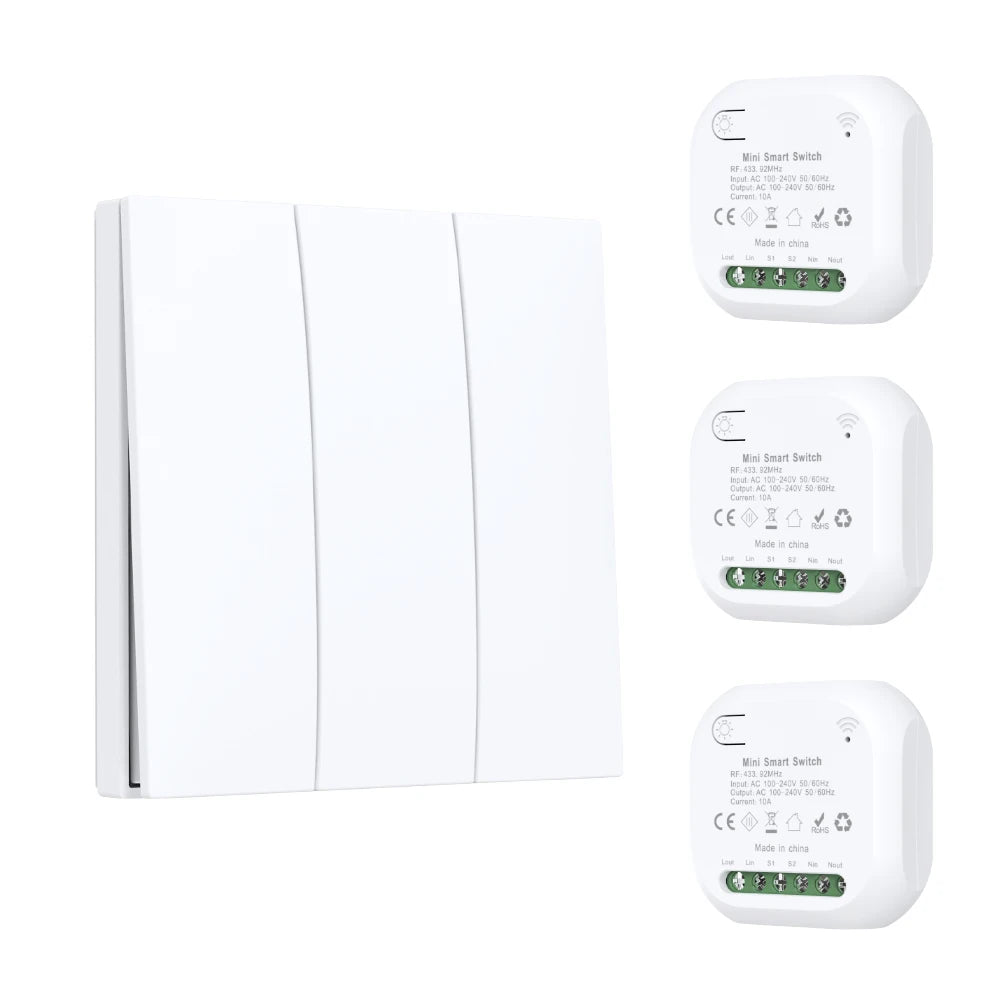

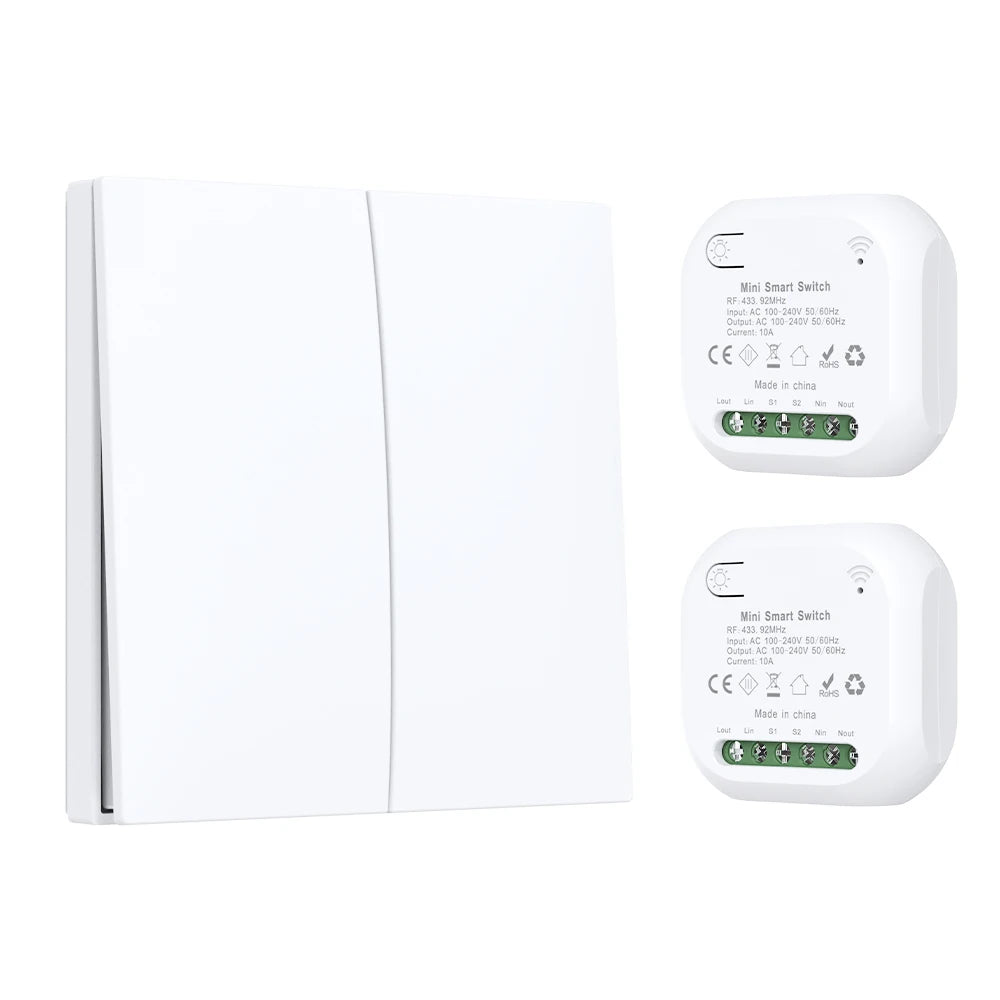

1. The switch panel is powered by kinetic energy, battery free for life, green and environmentally friendly. When using, simply connect the receiver to the neutral and live wires

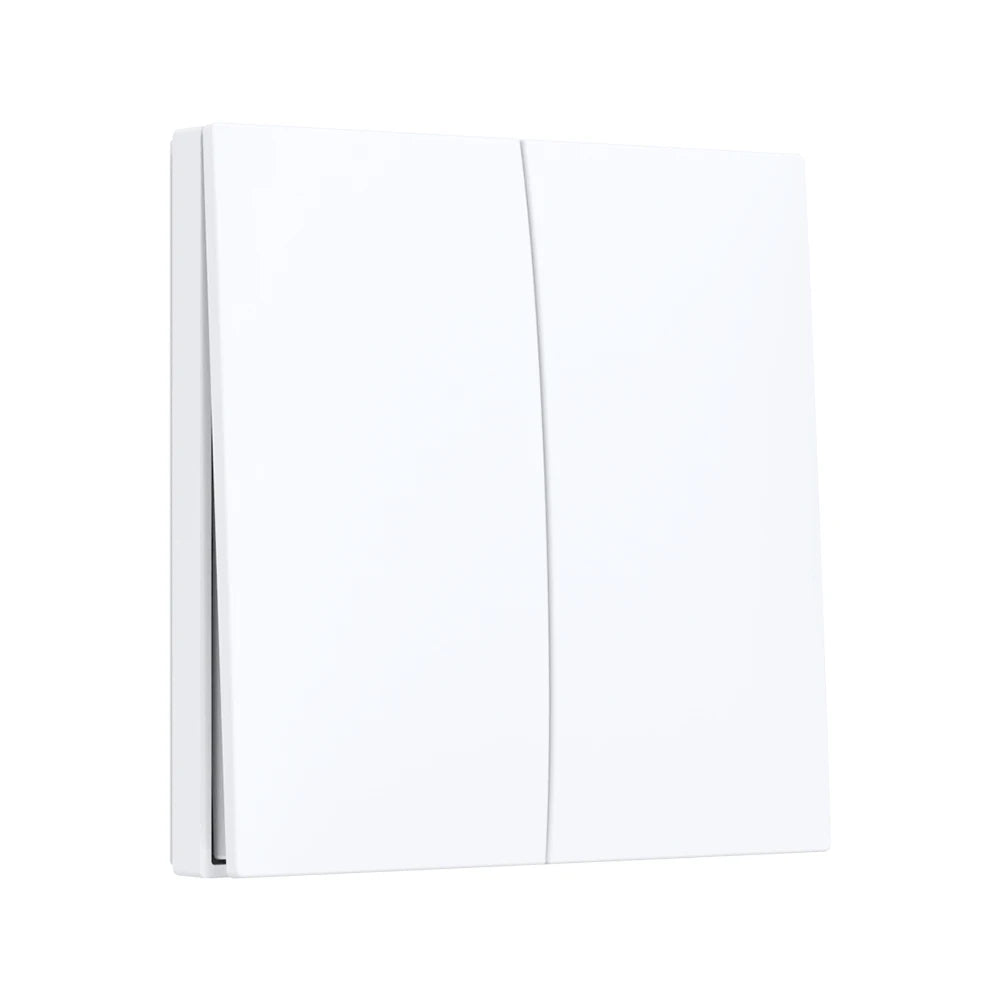

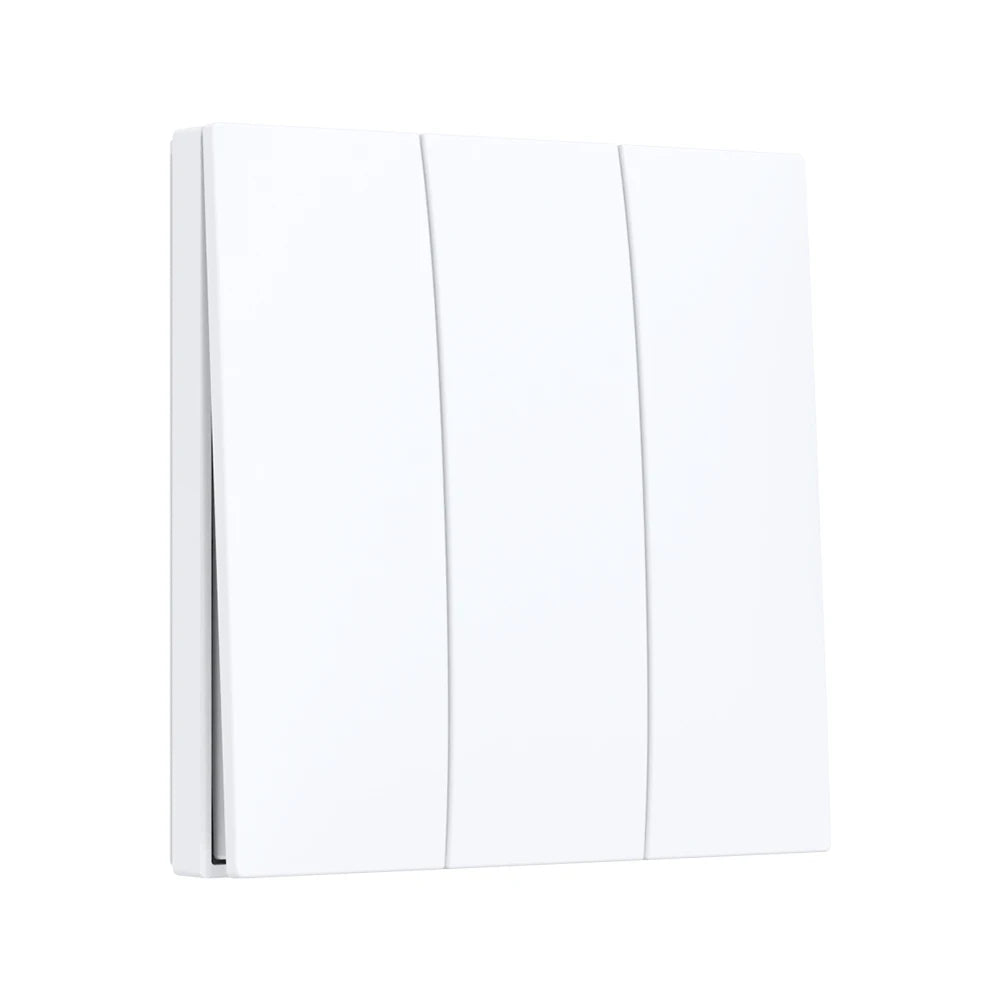

2.Newly developed and designed mold, micro curved thickened and hardened panel, matte craftsmanship, simple and beautiful, 1/2/3 gang optional, convenient and flexible combination for use
3. RF433 signal communication, remote control does not require network
4. Built with years of accumulated research and development technology, it has the advantages of long distance, sensitive response, and effortless pressing
5. No wiring required, easy to install, saves labor and materials
6. The receiver need to connect neutral wire and live wire, wide voltage design，compatible with AC 100~240V 50/60Hz, no flicker, stable and reliable
7. The receiver has overload protection function and is made of PC flame-retardant material, which has higher safety

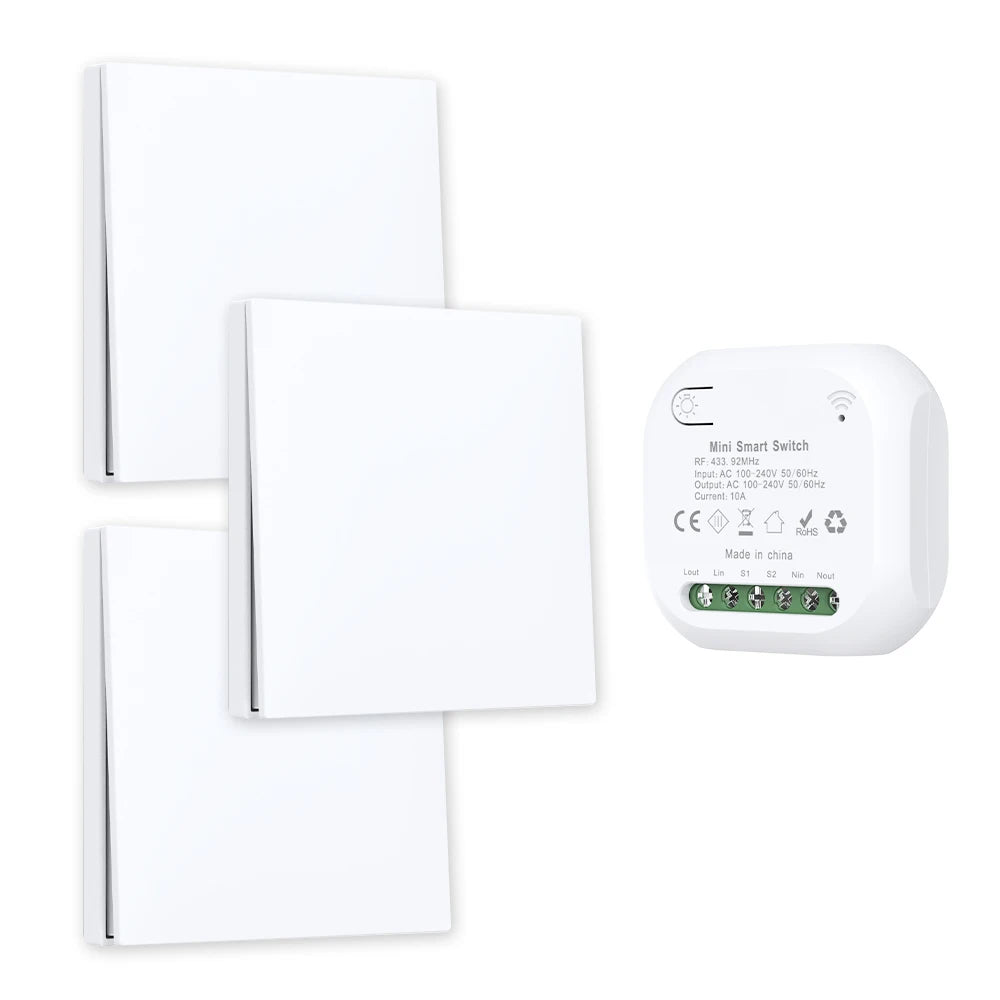

8. The receiver is equipped with a traditional switch interface, which can be connected to ports s1 and s2 to form a dual control mode with a wireless switch. The control does not affect each other
9. The rebound feedback of the switch panel rebound board is good, and the sound is low
10. 86 standard size, reserved screw holes, equipped with double-sided tape, flexible and diverse installation
11. After 200000 press tests, we provide original factory warranty services
12.Widely used: This product can be used in esidence, hotel, villa, hospital construction sites, gardens, homes, farms, factories, offices, laboratories, supermarkets. Any device can be remotely controlled through a remote control, such as light,rolling shutters, fences, fans, desk lamps.

Technical parameters:

1.Operating voltage: receiver AC 100-240V 50/60Hz,transmitter Kinetic power generation
2.Wireless distance: about 150 meters (open space) ，about 30 meters (no partition) (this data is the obstacle free test distance of the experimental open space, theactual distance will vary depending on the use environment and the obstacles, please take the actual distance as the standard)

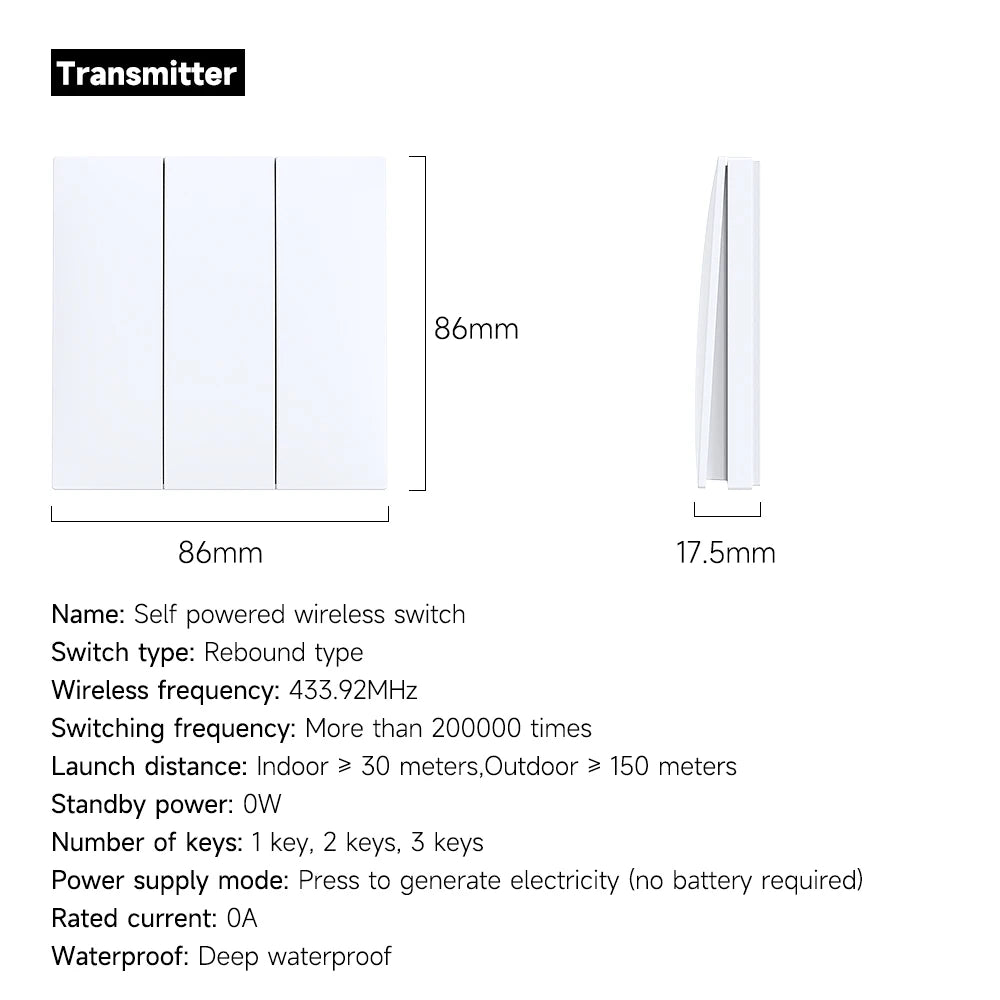

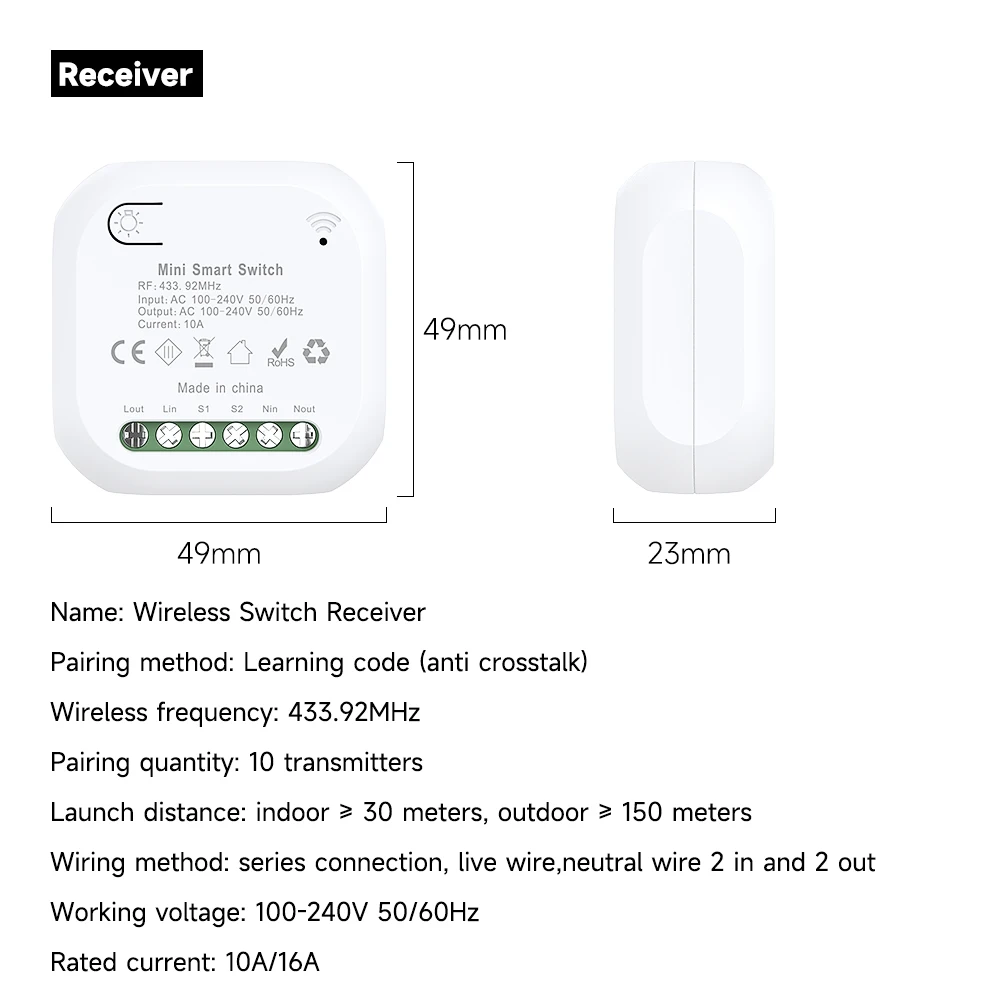

3.Receiver size:49x49x23mm Transmitter size:86x86x16.5mm
4.Rated Current:AC 10A
5.Standby power:<0.15W
6.Working frequency: RF433MHZ
7.Storage switch quantity:Can store 10 wireless switch panel(can be made)

Wiring method：

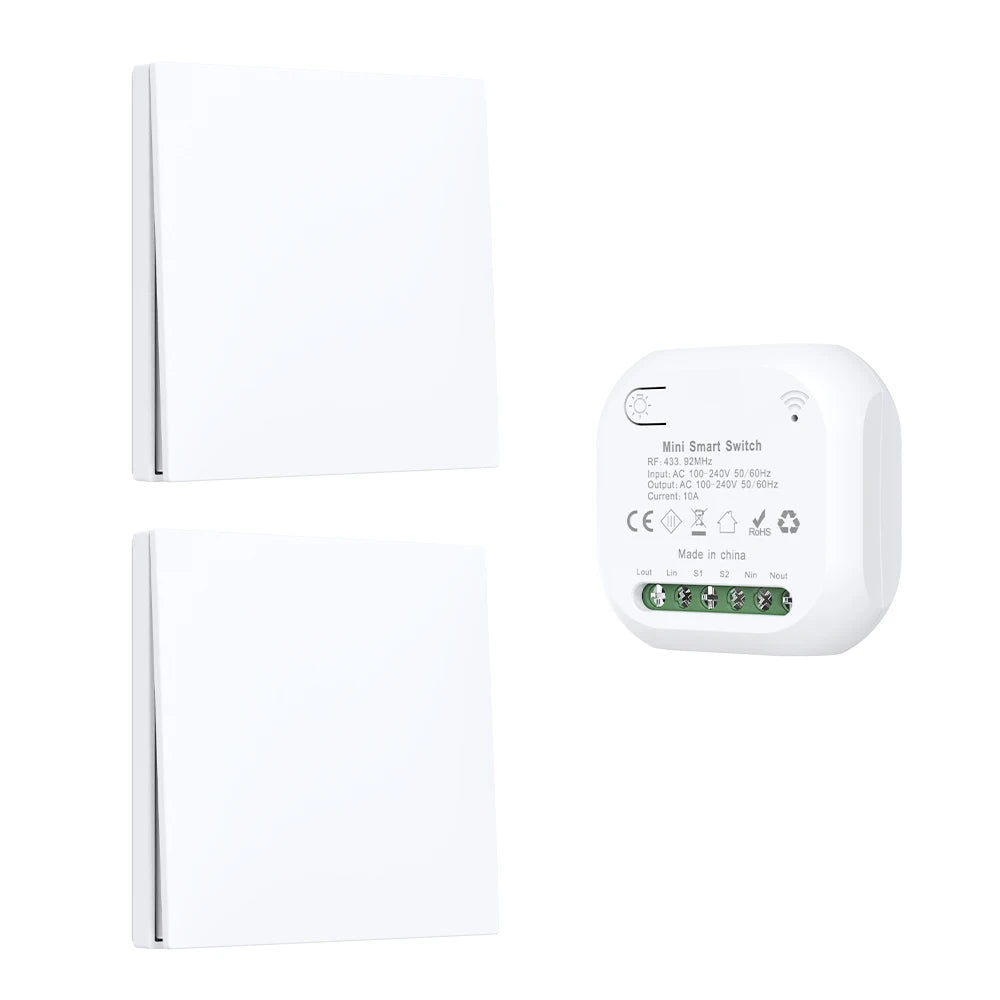

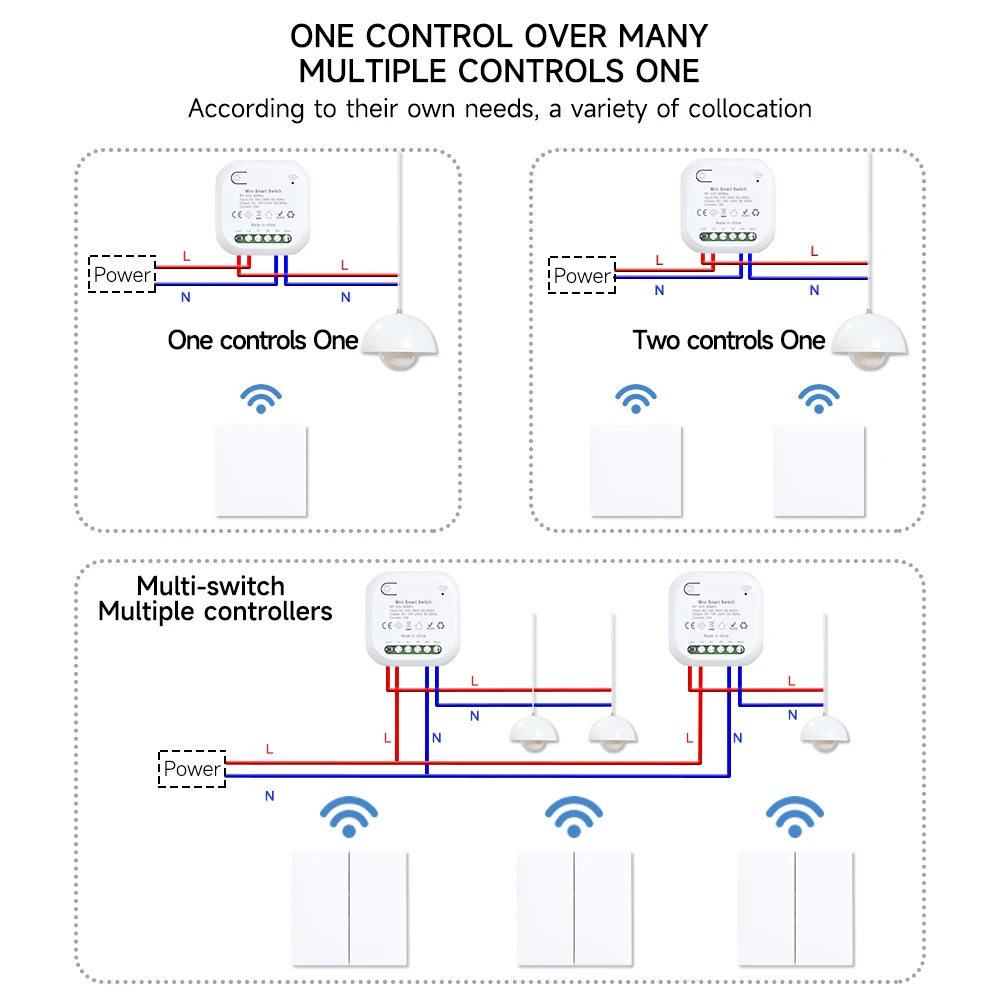

Wireless light switch receiver needs to be connected to a live wire and a neutral wire.
The wireless light switch receiver needs to be connected to the live and neutral wires.

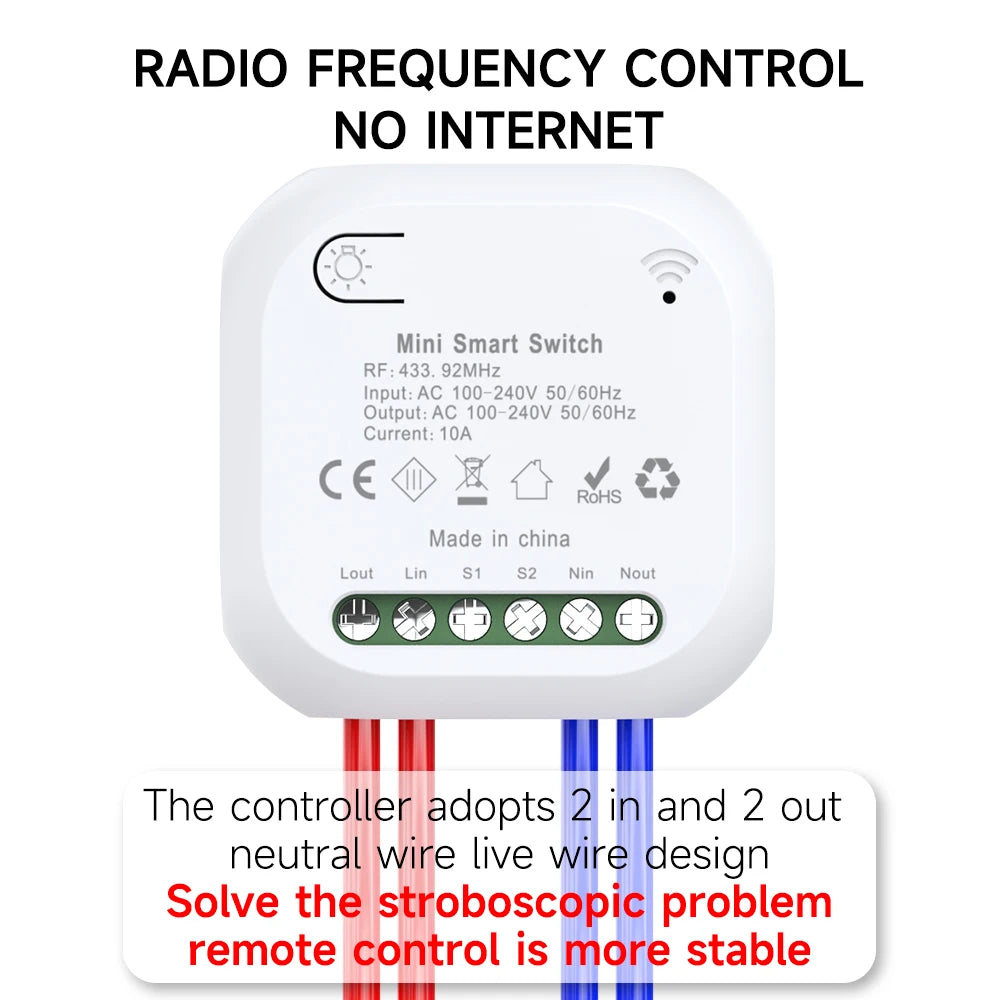

The (Lin) marked on the receiver is connected to the power live wire (incoming live wire), and the (Nin) is connected to the power neutral wire (incoming neutral wire).
(Lout) Connect the live wire (outgoing live wire) of the device to be controlled, and (Nout) connect the neutral wire (outgoing neutral wire) of the device to be controlled.
The S1S2 port is reserved for traditional single wire wall switches. By connecting the wire branch of the traditional switch to the S1 and S2 ports, it can form a dual control mode with the wireless switch without affecting each other's control.

Note:

1. Our product needs to be used with a receiver, unless you have previously purchased our product and need to purchase additional accessories, otherwise purchasing a transmitter or receiver separately will not work.
2. Our product uses RF433 communication, but it cannot be mixed with other RF433 products because in addition to frequency, it also needs to meet the requirements of decoding and coding speed.
3.Wireless control does not require a power supply and can be used outdoors or in humid environments. Pressing to generate electricity does not pose a risk of electric shock
4.Cut off all power before installing the receiver.
5.Cannot be installed inside a metal box as metal will shield signals and cannot be used.
6.If you purchase a complete set of products, they will be matched correctly at the factory. You only need to connect the receiver to the power and it can be used.

Package（e.g.1v1）:

1 x Wireless Switches
1 x Receiver
1 x English Instructions
3 x Adhesive Rubbers
