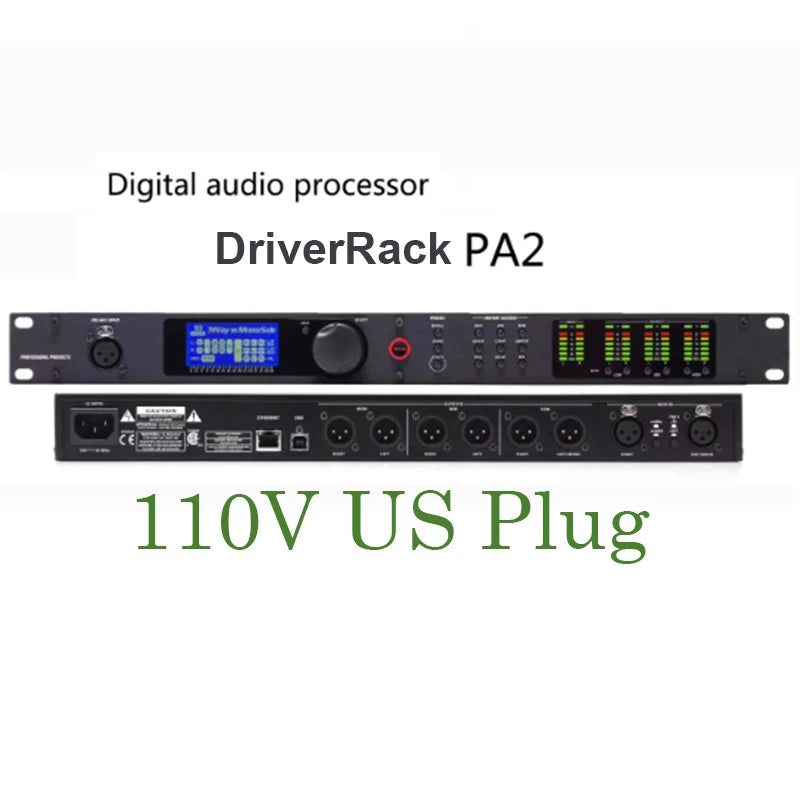

PA2/VENU360 2 Input 6 Output Stage Audio Processor Original Software Audio DriverRack PA2 Professional Speaker Audio Equipment
PA2/VENU360 2 Input 6 Output Stage Audio Processor Original Software Audio DriverRack PA2 Professional Speaker Audio Equipment
Available in stock (996)
Description
Description
SPECIFICATIONS
Brand Name: PaulKitson
Built-in Battery: No
Certification: CE
Frequency Range: 20Hz-20KHz
High-concerned chemical: None
Inbox adaptor: Yes
Model Number: PA2/VENU360
Origin: Mainland China
Power Source: Ac,Ac
Type: Signal Processing
Voltage: 110v/220v
Voltage range: High voltage (50-1000V DC, 75-1000V AC)
plug: EU/US
PA2/VENU360 2 Input 6 Output Stage Audio Processor Original Software Audio DriverRackPA2 Professional Speaker Audio Processor

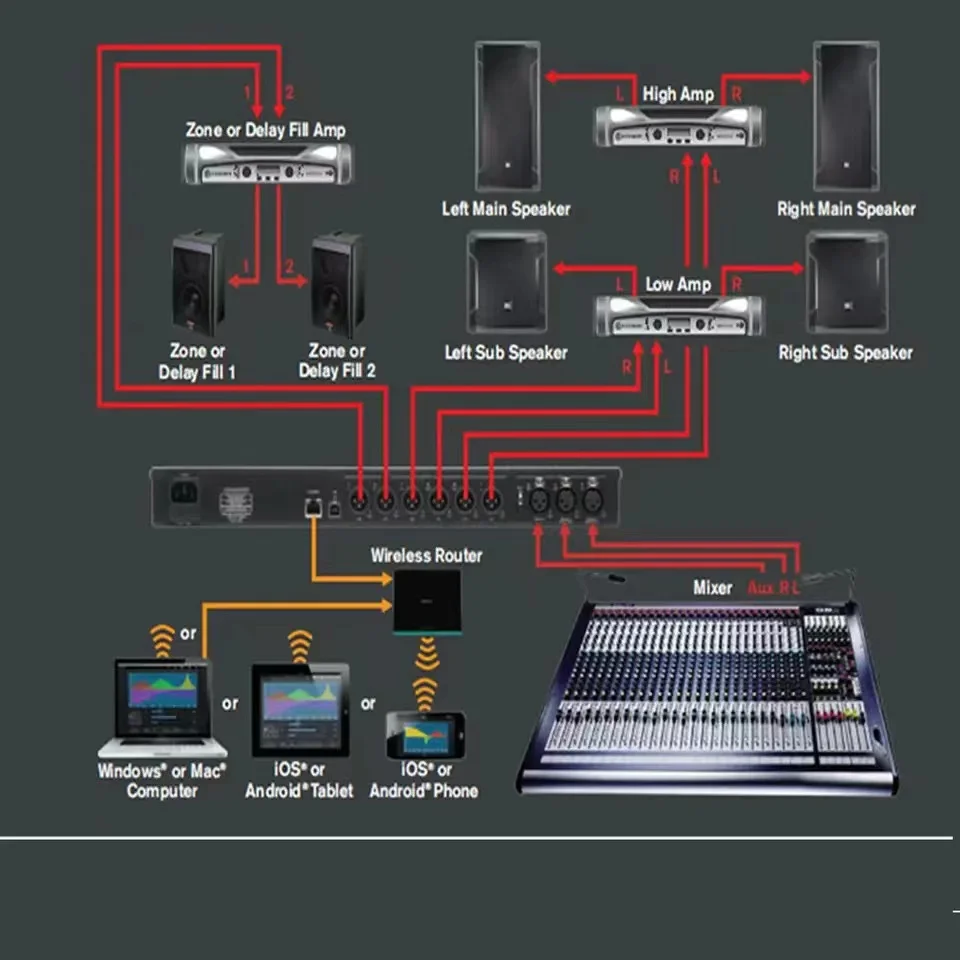

The PA2 provides all the processing you need between your mixer and amplifiers to optimize and protect your loudspeakers.Ethernet control via an Android, iOS, Mac, or Windows device, and updated Wizards, the PA2 continues great-sounding, powerful, and affordable loudspeaker management processors, for a whole new generation.
Packing List:
audio processor x1
Using Manuel x 1
Power cable x1
Analog input:
Number of inputs: 2 inputs, 1 RTA microphone input
Connector: 2 x XLR bus input, 1 x XLR female RTA microphone input
Microphone input: electronic balance / RF filter / circuit input level: >50k
Maximum input level (line input): >+ 20 dBu
Common mode rejection ratio: >45dB
Phantom power supply for microphone preamplifier: + 15 VDC
Analog output:
Number of outputs: 6-wire output
Connector: XLR male plug
Tpe: Electronic balance, RF filter
Maximum output level: + 20 dB
Quasi-delay: Up to 10 milliseconds per output channel
A/D performance:
A/D dynamic range: 24-bit +112dB -110dB with A/D converter with IVTM conversion system
Type IV dynamic range: +123 db with transient materials, +22khz, 121 decibels (no weighted materials), 22khz 115 db standard configuration, program materials, +22khz
D/A converter: 24 bits
Dynamic range: +112db -110db
System performance
Internal processing word length: 32-bit floating point
Sampling rate: 48 khz
Dynamic range: +110 db -107 db
THD+ noise: typical value is 0.003% + 4 dbu, 1 khz, 0 db
Gain frequency response: Crosstalk between signal channels: 20 hz-20 khz, + 0 /- 0. 5 db
Delay: Input and output: 1.847 milliseconds, <- 110 decibels, -120 decibels (input and output: -100 decibels)
Power supplyWorking voltage: 100-120V 50/60 Hz or 220-240V AC 50/60 Hz Power consumption: 22W
Features
• 24-Bit A/D & D/A Converters
• Type IV™ Conversion
• 48 or 96 kHz, 32-Bit Floating-Point Processing
• Sample Rate Conversion
• Setup Wizard for Easy System Configuration
• Level Assist Wizard for System Level Balancing
• AutoEQ™ Wizard for Fast & Accurate Room Equalization using 10-Band Parametric EQ
• AFS® Wizard for Easy & Accurate Feedback Suppression
• Support for Multi-Mono, Stereo, LCR, & Aux-Fed Sub Input Configurations
• Selectable 31-Band Graphic EQ or 8-Band Parametric EQ with Narrow Notch Capabilities
• Input Delay Processing for Aligning the Sound System to the Stage Backline
• Fill Delay Processing for Balcony & Tower Delays
• Subharmonic Synthesis for Deep, Punchy Bass
• Compression
• Crossover with Support for Full Range up to Mono 6-Way Configurations
• Selectable Crossover Filter Types & Slope Rates with Adjustable Polarity & Variable Phase Control
• Up to 3000ms Total Cascaded Delay Time (3 Configurable Delay Modules at 1000ms Each)
• 8-Band Output Parametric EQs for Speaker Tunings
• Output Driver Alignment Delays for Multi-Way Systems
• PeakStopPlus™ Output Limiters
• Built-In Signal Generator & RTA for System Fine-Tuning & Troubleshooting
• 3 XLR Inputs (Selectable Between 4 AES or 3 Analog Input Channels)
• 6 Analog XLR Outputs
• Front-Panel RTA Mic Input with 48V Phantom Power
• Front-Panel Input / Output Mute Buttons
• Front-Panel Copy / Paste Functionality
• 6-Segment Front-Panel Signal Meters with Input Clip & Output Limiter Indicators
• Front-Panel Lockout
• App Security Lockout
• Large, Bright, Easy-To-Read LCD Display
• 25 Factory / 75 User Presets
• Various Speaker & Amplifier Tunings Included
• Network Control via the Free VENU360 Control Application for iOS®, Android™, Mac®, & Windows® Compatible Devices
