SPECIFICATIONS

Air flow rate: 50L/min

Application: Submersible

Brand Name: TUXING

Certification: CE

Cooling systen: Water and fan cooling

Does it include batteries: Not included

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

Fuel: Electric

Function: Automatic shutdown

High-concerned chemical: none

Inflating speed: 2800R/min

Lubrication mode: Splash

Model Number: TXEDT032

Motor power rating: 2.2KW

Oil recommend: 100% synthetic compressor oil

Origin: China Mainland

Power (W): Electric

Power Source: Electric

Pressure: High Pressure

Standard or Nonstandard: Standard

Structure: Booster Pump

Theory: Reciprocating Pump

Use: Booster Pump

Working pressure: 4500Psi/30Mpa/300Bar

TXEDT032 is built-in water cooling system compressor,working pressure 300bar/4500psi/30mpa, High pressure air pump inflating speed: 2800r/min.



TXEDT032 is two Stage Cylinder Compressor Heads,Fast Filling Speed, Suitable for Filling large capacity Tank.

it takes about 3 minutes to fill 0.5 liters tank from 0-300 bar,

it takes about 45 minutes to fill 6.8 liters tank from 0-300 bar.



TXEDT032 is built-in water cooling system,Built-in large volume water tank,Radiator cooling system,Three fans strongly lower the temperature in large area.Easy to carry the compressor outside,



TXEDT032 is Built-in two stage filtration system and molecular sieve intake filtration system,make the air more clean,Really achieve air filtration from compressor.Using the spiral tube to make the air more cooler.Use the safety valve,it will auto purge after over-pressure.



This model have set pressure version and auto purge version.

set pressure version:Adjustable pressure gauge. It will automatically stop when the compressor reaches the pressure you set.

Auto Purge version:After fill, turn on the purge valve switch,the compressor will drain the excess oil and water, so that the machine will not be damp, and protect the machine，The machine will not have excess pressure in it and generate load.

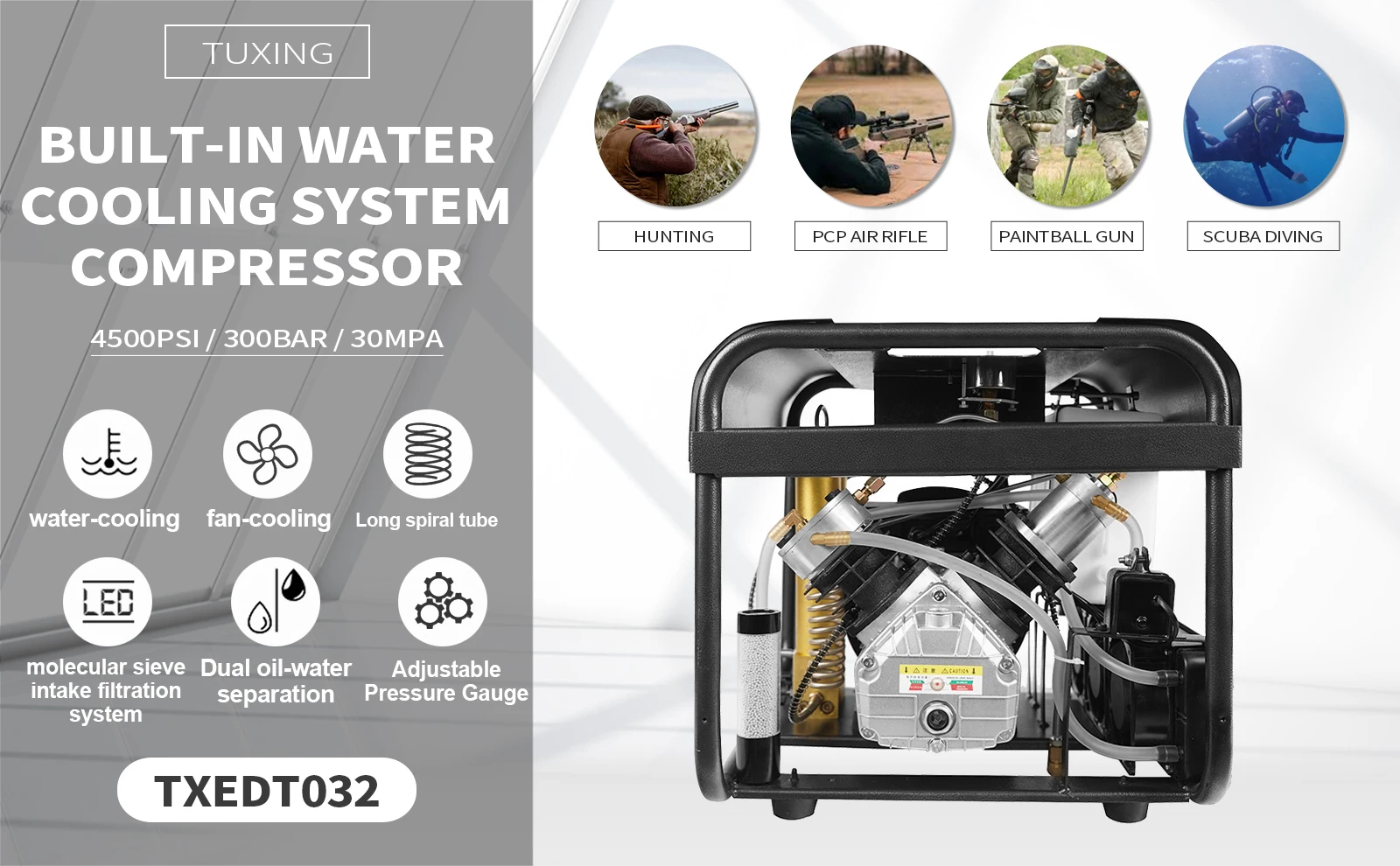

Built-in Water Cooling and Filter System Compressor
TXEDT032 is built-in water cooling and two stage filtration system,

Built-in large volume water tank,we don't need to connect the water pump,Without water bucket,make the air more clean,

Fast filling speed,Suitable for filling large capacity tank.

it can be used for diving,hunting,fire fighting, paintball,etc.

• Set-Pressure&Auto Purge

• Built-in two stage filtration system

• Built-in fan and cooling system

• Built-in molecular sieve intake filtration system

Specification

• Model:TXEDT032

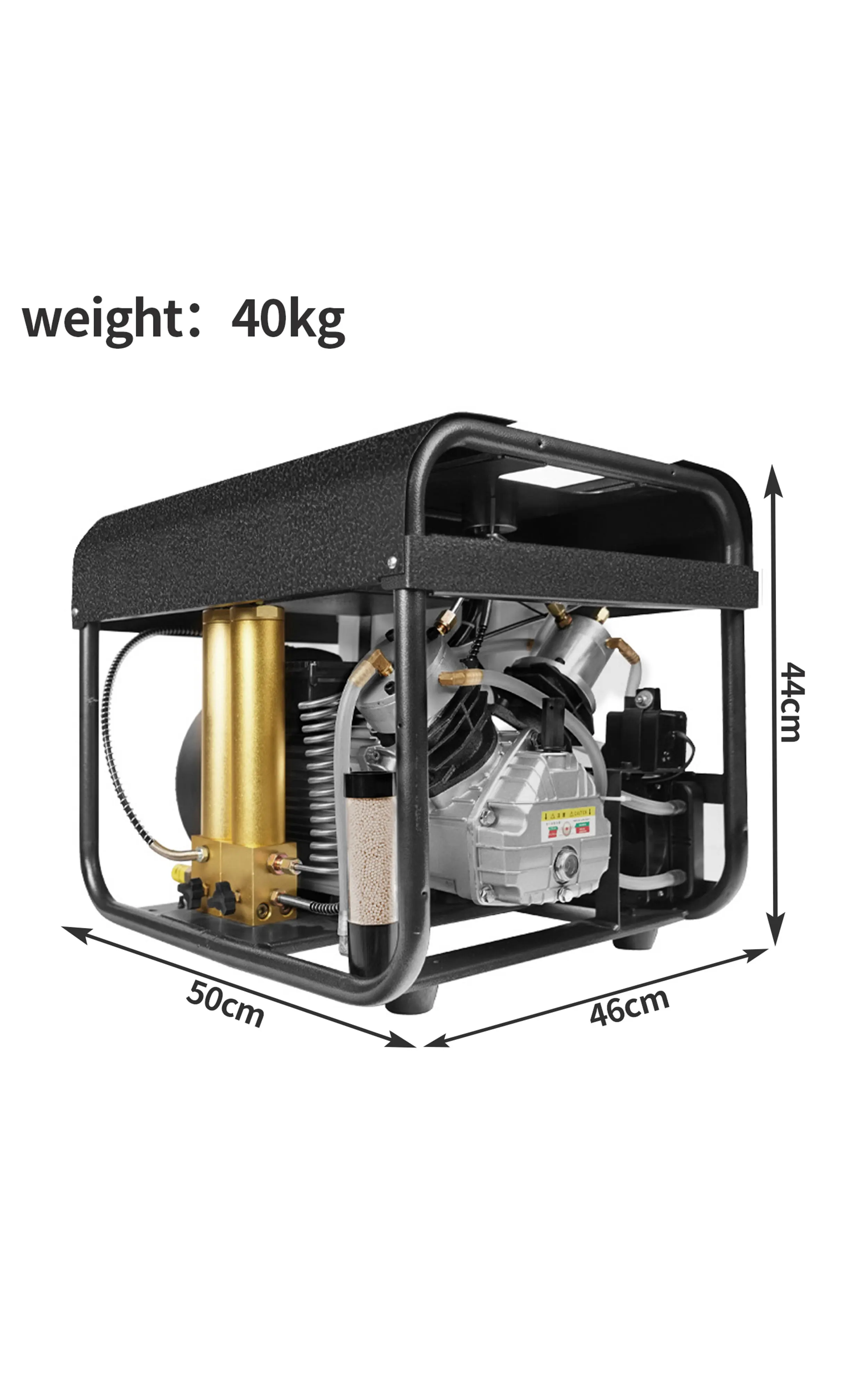

• Item size: 50*46*44cm

• Weight：40kg

• Voltage: 220v/50hz,110v/60hz

• Power: 2200W

• Inflating Rate: 2800R/min

• Working Pressure: 30MPa/300Bar/4500Psi

• Tank Capacity:0-6.8L

• Compression Stage: Two-stage reciprocating

• Shut Down:Set-Pressure & Auto Purge

• Cooling: built-in Fan and water cooling

• Lubricating Oil: ISO VG 46

• Oil Capacity：0.4L


•

•

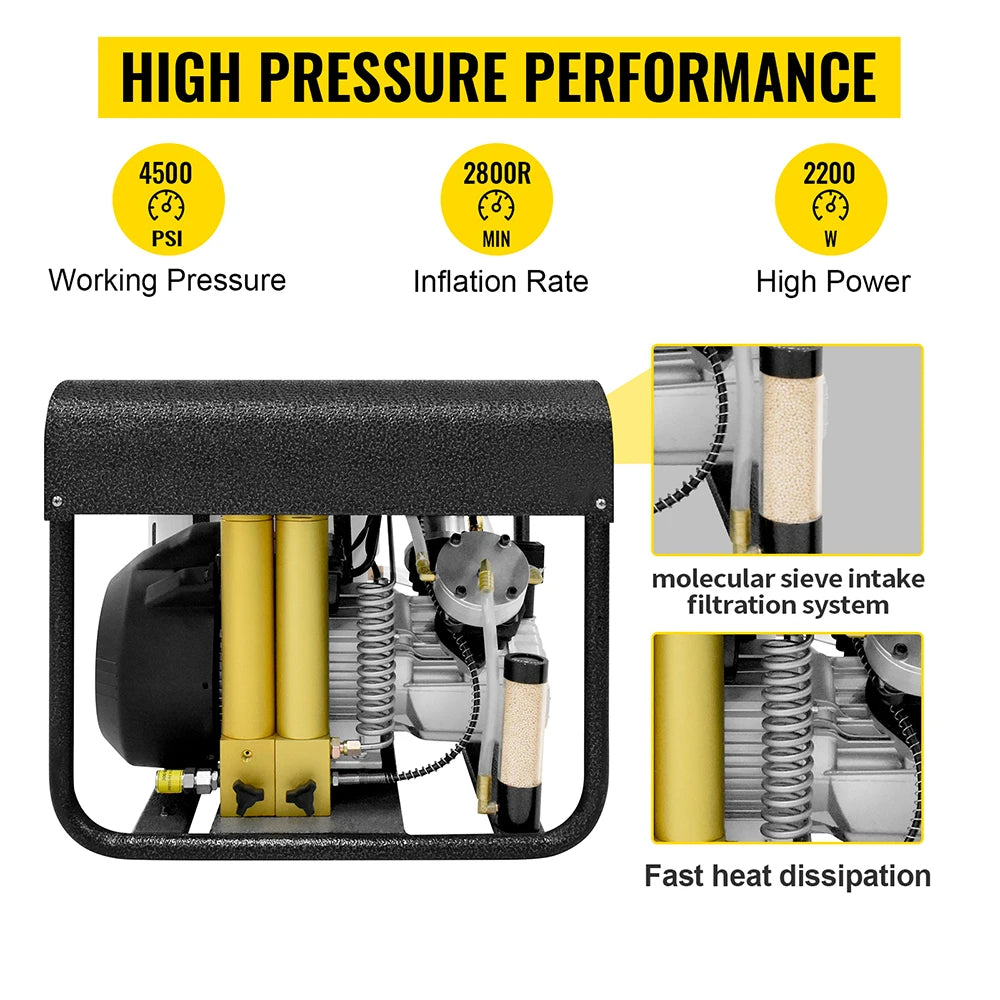

  High Pressure Performance


  This compressor features a 2200W high-power copper motor and excellent inflation performance.
  Built-in molecular sieve intake filtration system,make the air more clean,Using the spiral tube to make the air more cooler


•

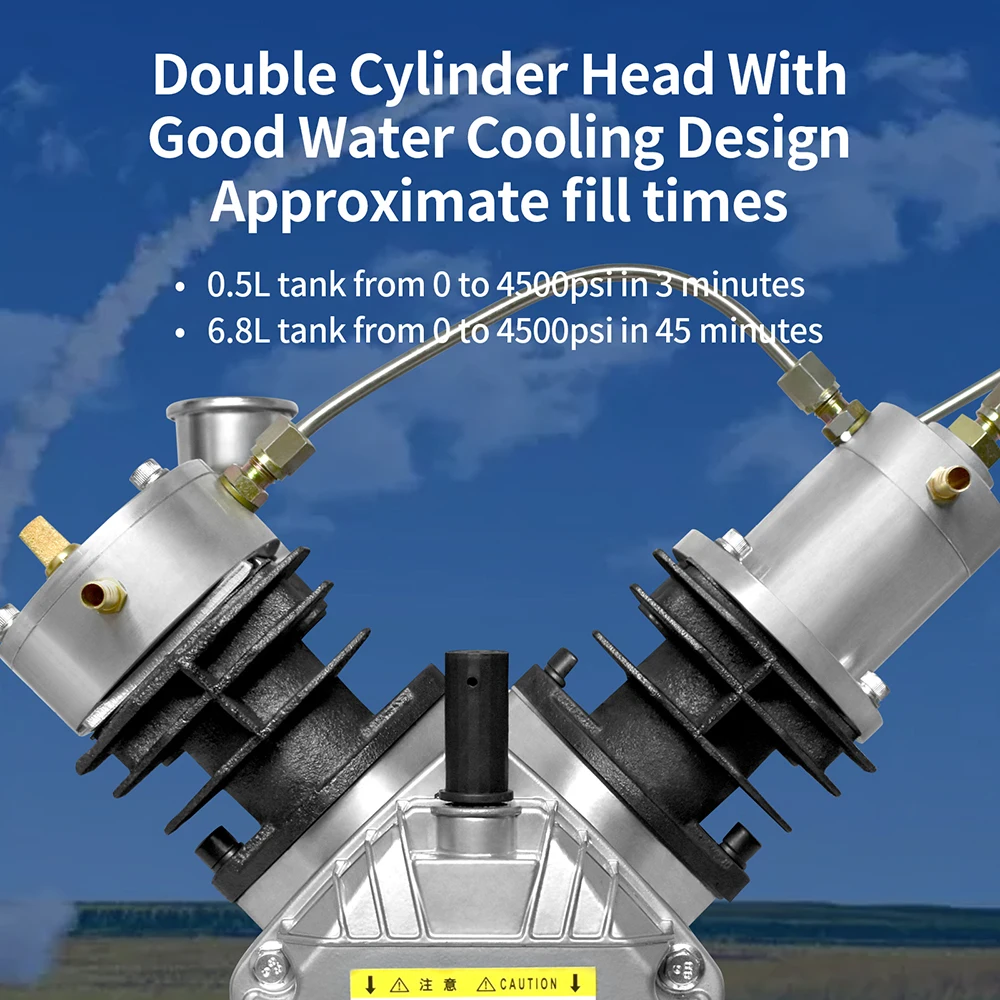

  Two Stage Piston Cylinder Head


  Designed with two-stage compression to ensure stable performance,Fast filling speed,Suitable for filling large capacity tank,


  0.5L from 0-4500psi about 3--5min.


  6.8L from 0-4500psi about 30-45min.


•

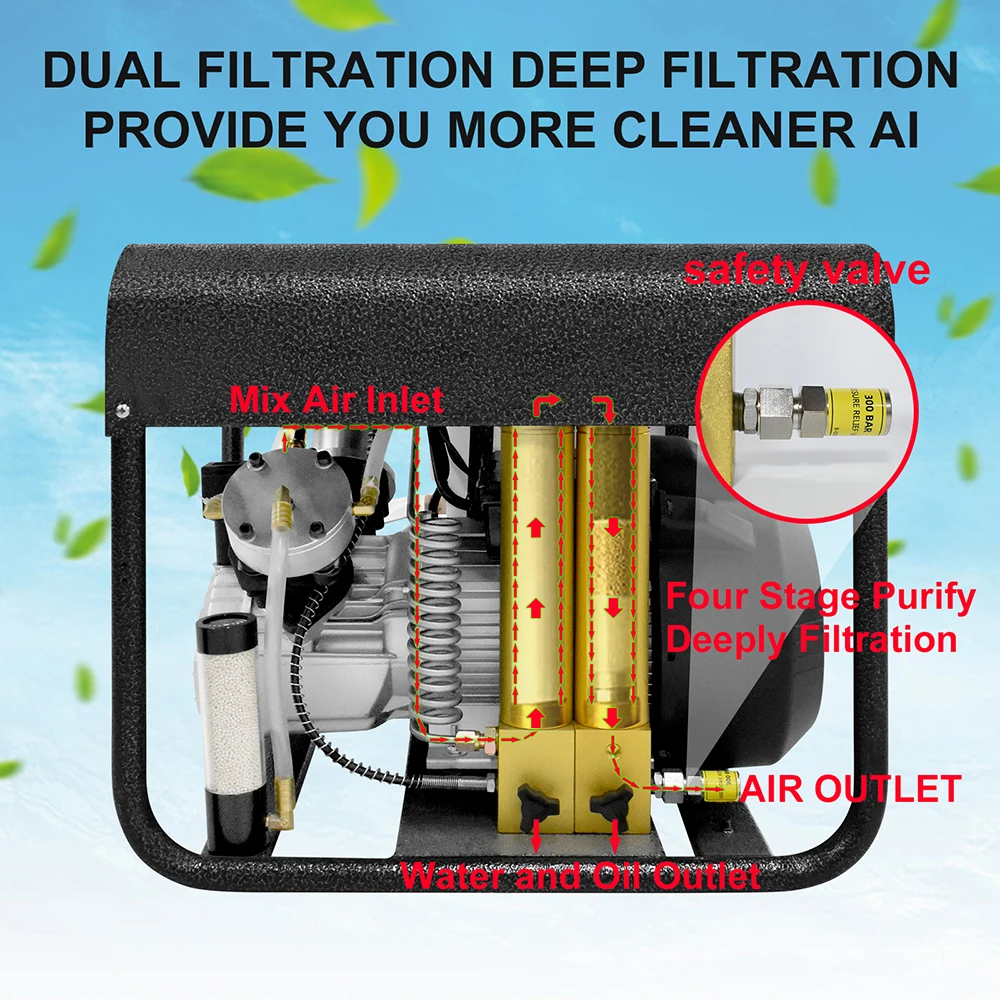

  Dual Filtration Deep Filtration




  The compressor is built-in two stage filtration system ,Make the air quality cleaner and purer.No need to purchase additional filters,

  Use the safety valve,it will auto purge after over-pressure.



•

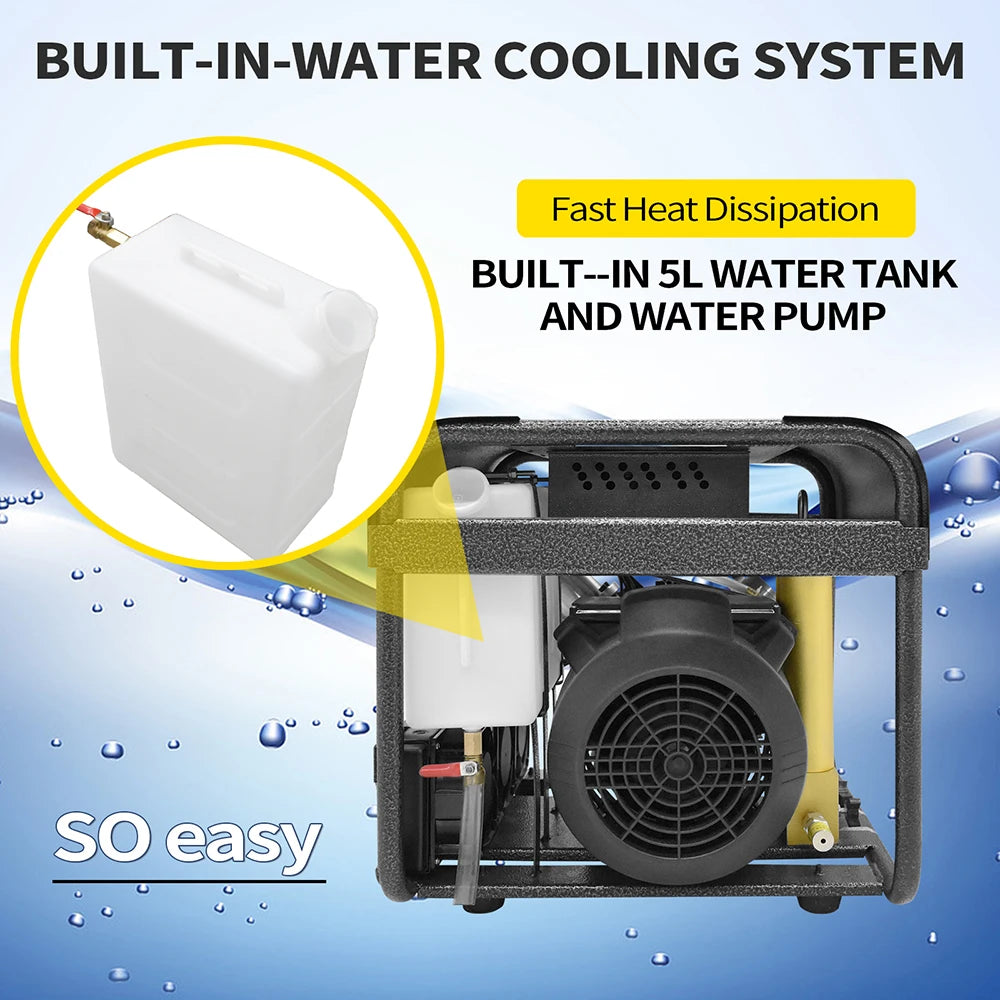

  Built-in Water Cooling System


  The compressor built-in water cooling system,Built-in 5L volume water tank,Radiator cooling system,we don't need to connect the water pump,

  Easy to carry the compressor outside,Fast heat dissipation.Good cooling system can make the compressor continuous working

•

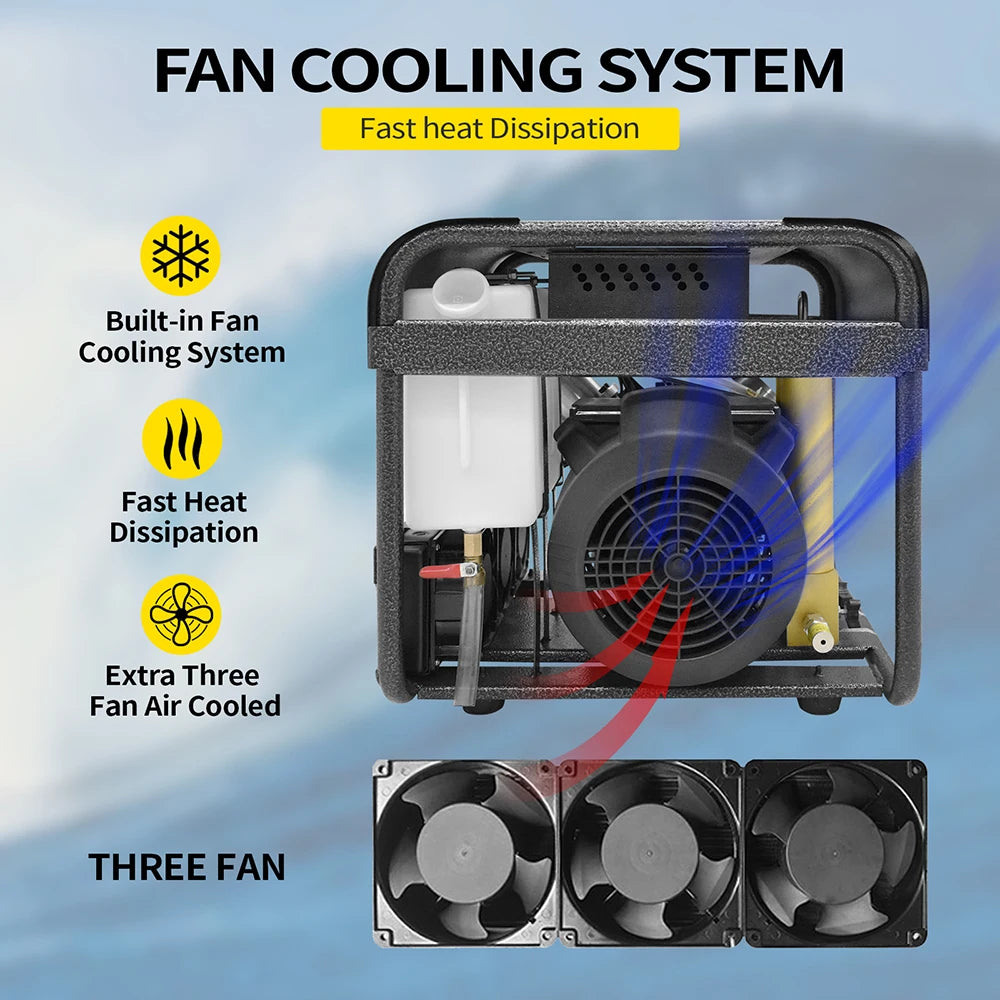

  Built-in Fan Cooling System


  Three fans strongly lower the temperature in large area,

  The fan blades will run five times in a circle by using the technology calculation method,which makes the air flow stronger.The air flow can make the motor cooling faster in order to extend the service life of the motor


•




  Wide Application


  This pcp/scuba compressor features oil and water separator filtration. Clean air will be discharged by the machine, suitable for the mini diving bottle, PCP rifle, paintball tank, air pistol, paintball air rifle, fire fighting, leakage detecting, pressure-tight test, air impermeability test, etc.
