SPECIFICATIONS

Battery Included: no

Brand Name: YIZHAN

Certification: CE

Drawtube: Monocular

Features: High Definition,Handheld,Portable,Digital

High-concerned chemical: None

Is Smart Device: Yes

Magnification Ratio: YIZHAN XHU4002

Material: Aluminium alloy

Model Number: YIZHAN XHU4002 150x

Origin: Mainland China

Resolution Range: 0.1 NM - 1 NM

Semi-finishedproduct: No

Theory: Video Microscope

YIZHAN Model: YIZHAN XHU4002

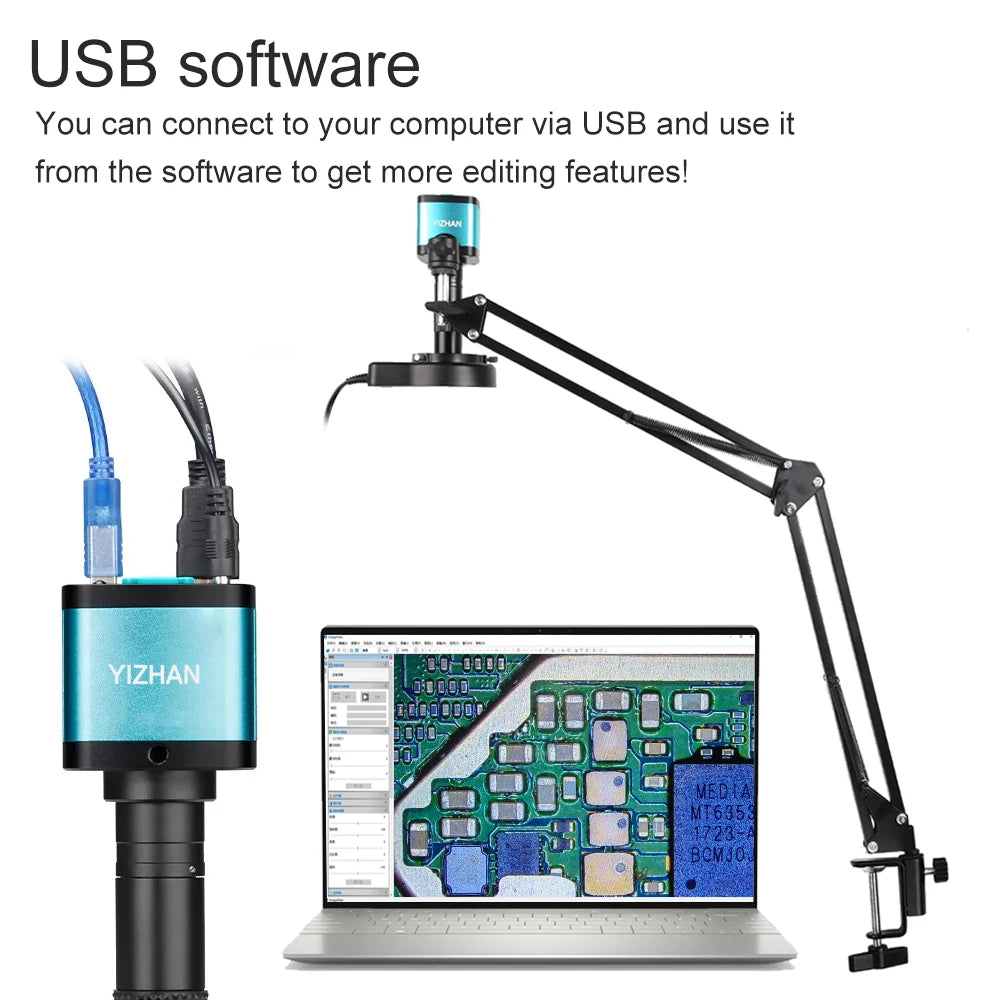

Microscope software download address.

https://drive.google.com/file/d/1uhIXHPESUhsn4dt3KSQ0sBGb4_ta6aWO/view?usp=sharing

If you cannot accept the shaking amplitude of the stand in the video, please do not purchase. Thank you for your cooperation.

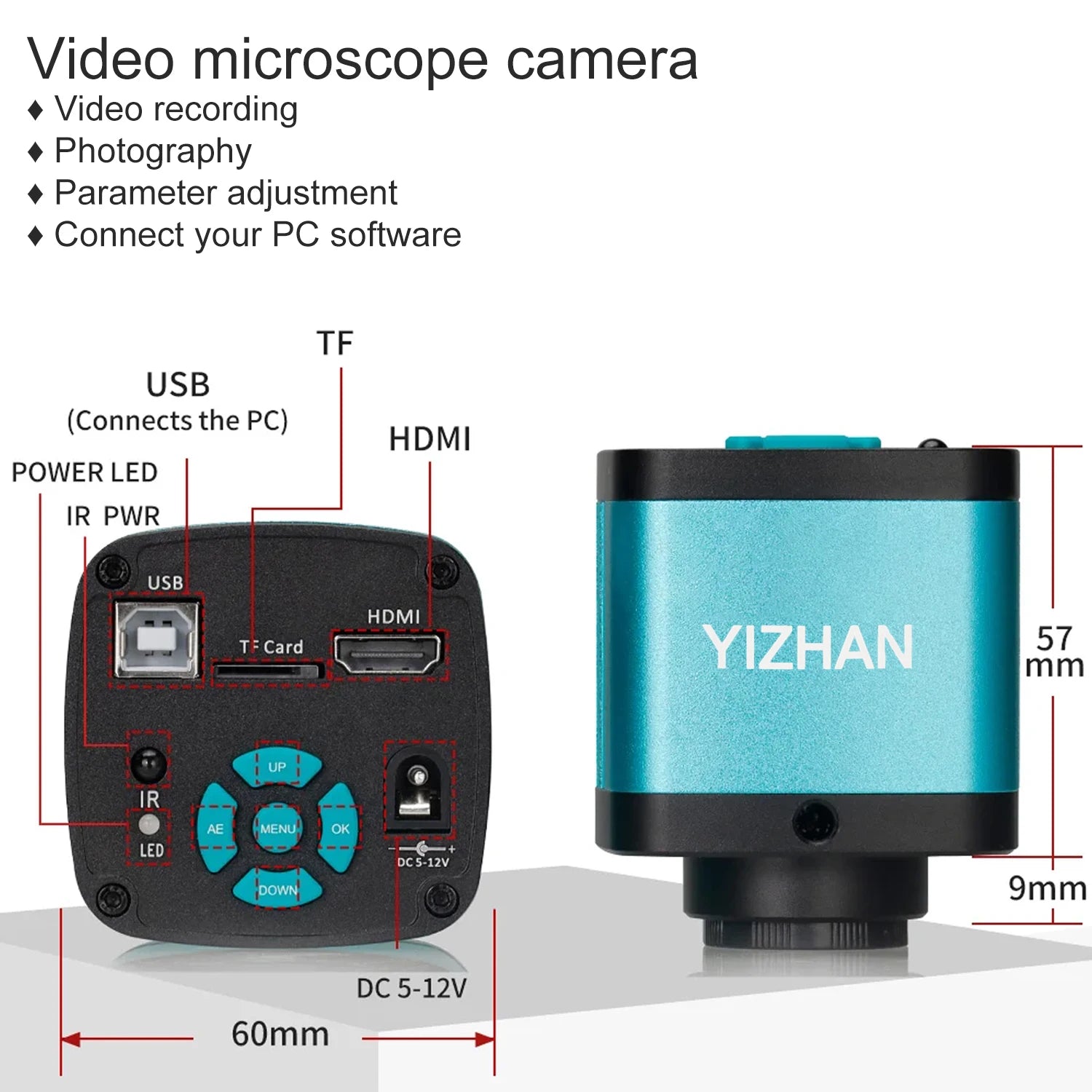

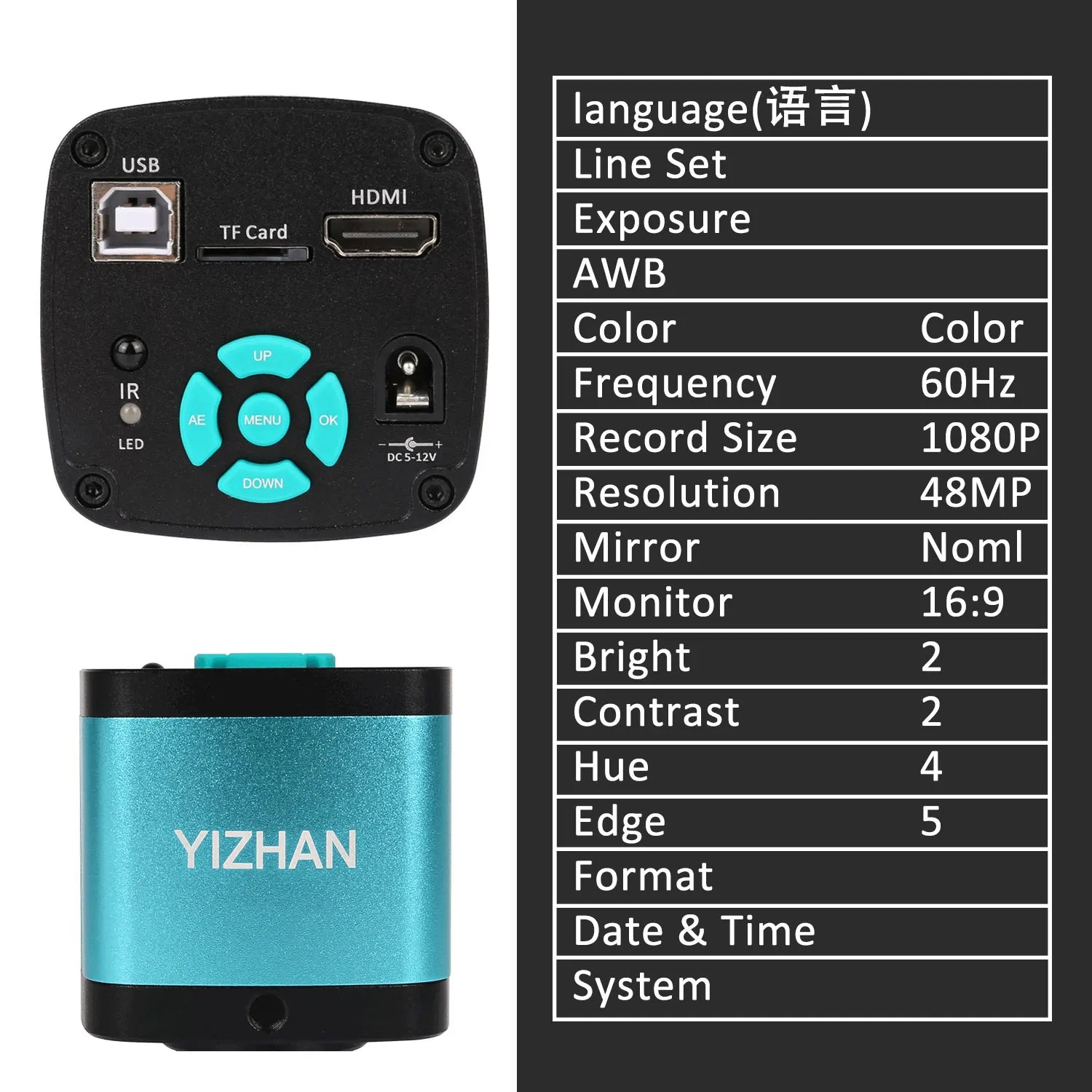

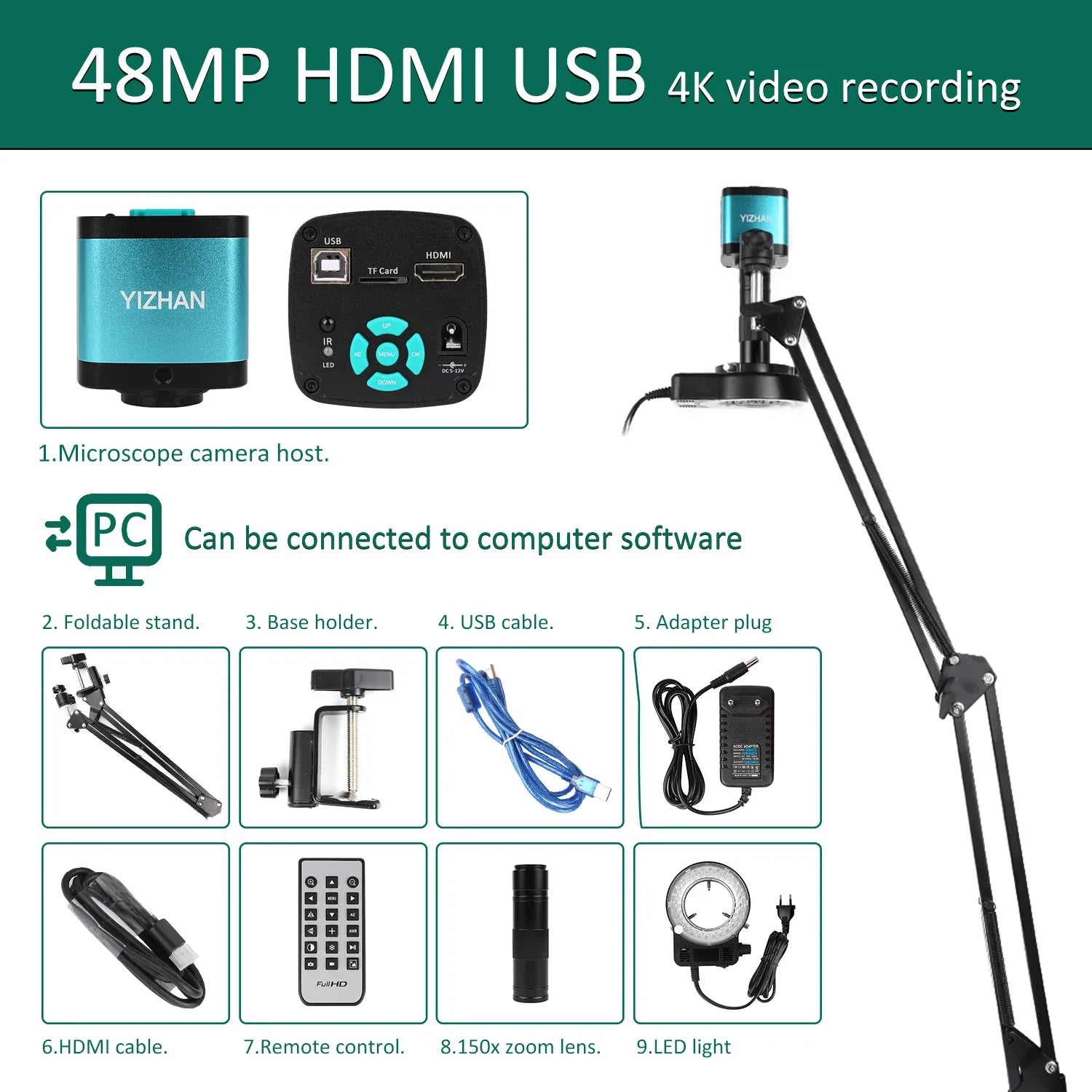

YIZHAN XHU4002

4K 48MP Microscope Camera (HDMI USB)

Model: Camera with HDMI USB2.0 two output

Image sensor: 48 megapixel Panasonic sensor

Frame rate: 1920*1080 60F/S @ HDMI output

Video save Movie size:4K(25fps) 2K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.)

Housing: All metal

Support:C-Mount lens

Digital magnification: 5 times digital zoom

White balance: Auto/manual

Cross cursor: Support multi-color, size adjustable

TF card interface: Max 32G

video format:MOV

HDMI interface: HDMI/USB output

Image : 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456

Language:Chinese/English

Mirroring: Support

Frequency:50Hz/60Hz

Monitor:16:9/16:10/4:3

Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size

Power supply:5-12V 1A

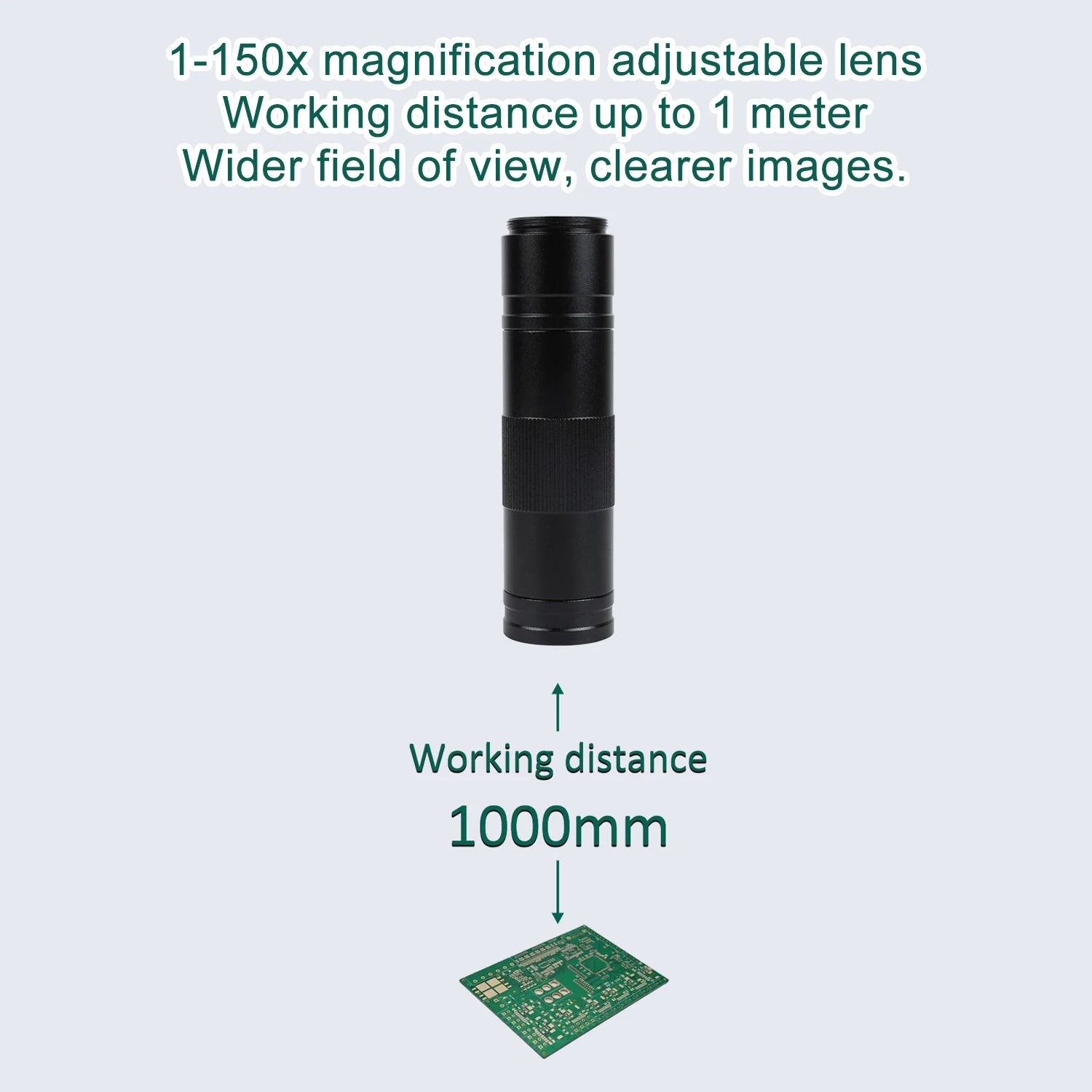

1X-150X C-mount Lens:

Working distance: 50mm-1000mm

zoom ratios: 1 : 15

Magnification Power by 0.15- 2X (about 1 - 150X on the display)

view field of Max multiple : 4.2mm*2.4mm

view field of Min multiple : 130mm*70mm

Size: 30mm(diameter) * 99mm(length)

Weight: 195g

56 bright white LED bulbs：

100,000 hours of life

Intense and focused shadow-free illumination

The brightness of 0-100%Adjustable,high brightness

Variable intensity control

Power input: 90-260V, 50-60HZ

Suit for the dia of the lens: 30mm-63mm

Working distance:400mm

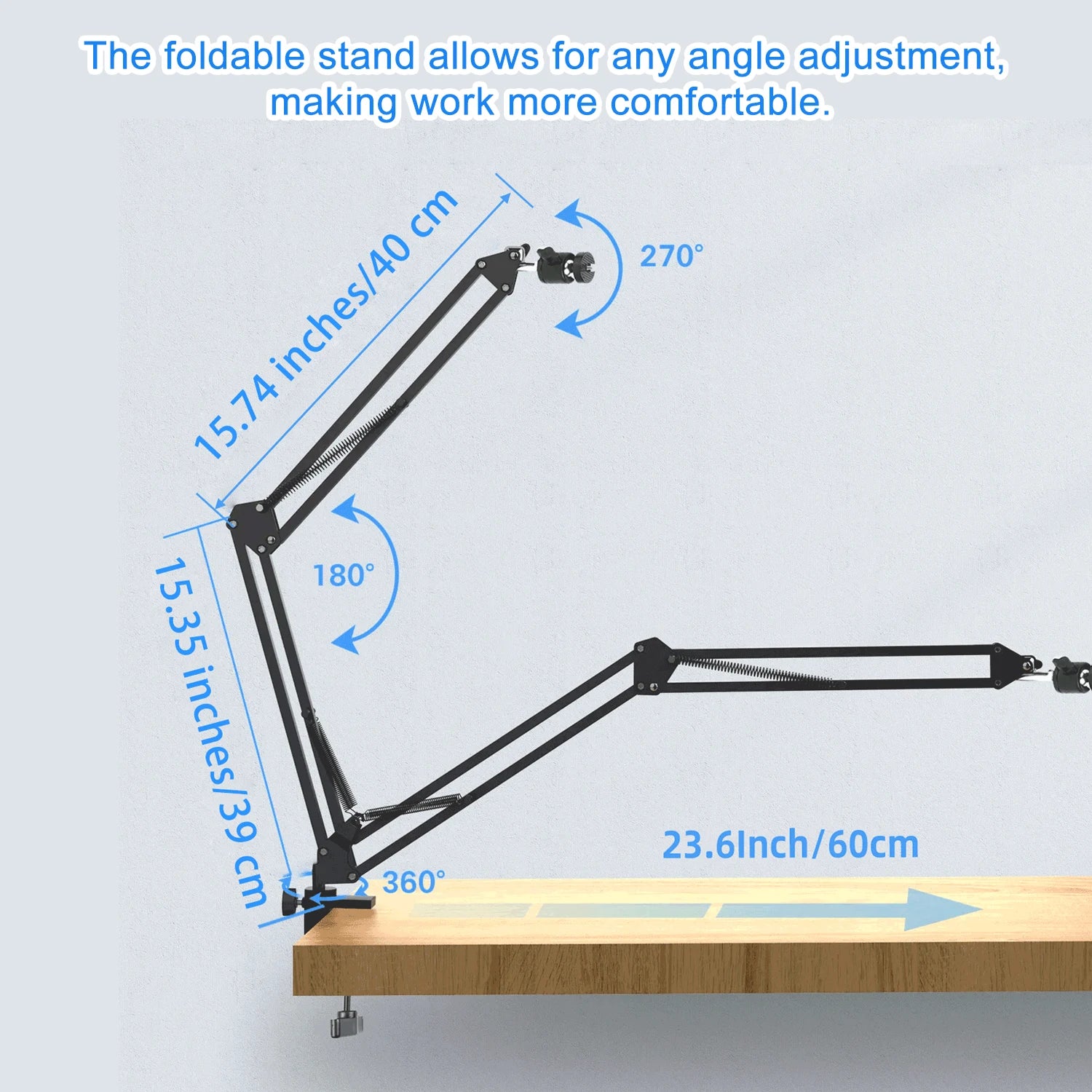

Adjustable bracket ：

size: 400mm+390mm

Maximum thickness of bracket installation: 50mm

It is recommended that when the working distance exceeds 40cm, please use a work desk lamp to fill in the light.

List of packing：

1 x Microscope Camera Set

1 x 150X lens

1 x 56 led ring light

1 x Stand

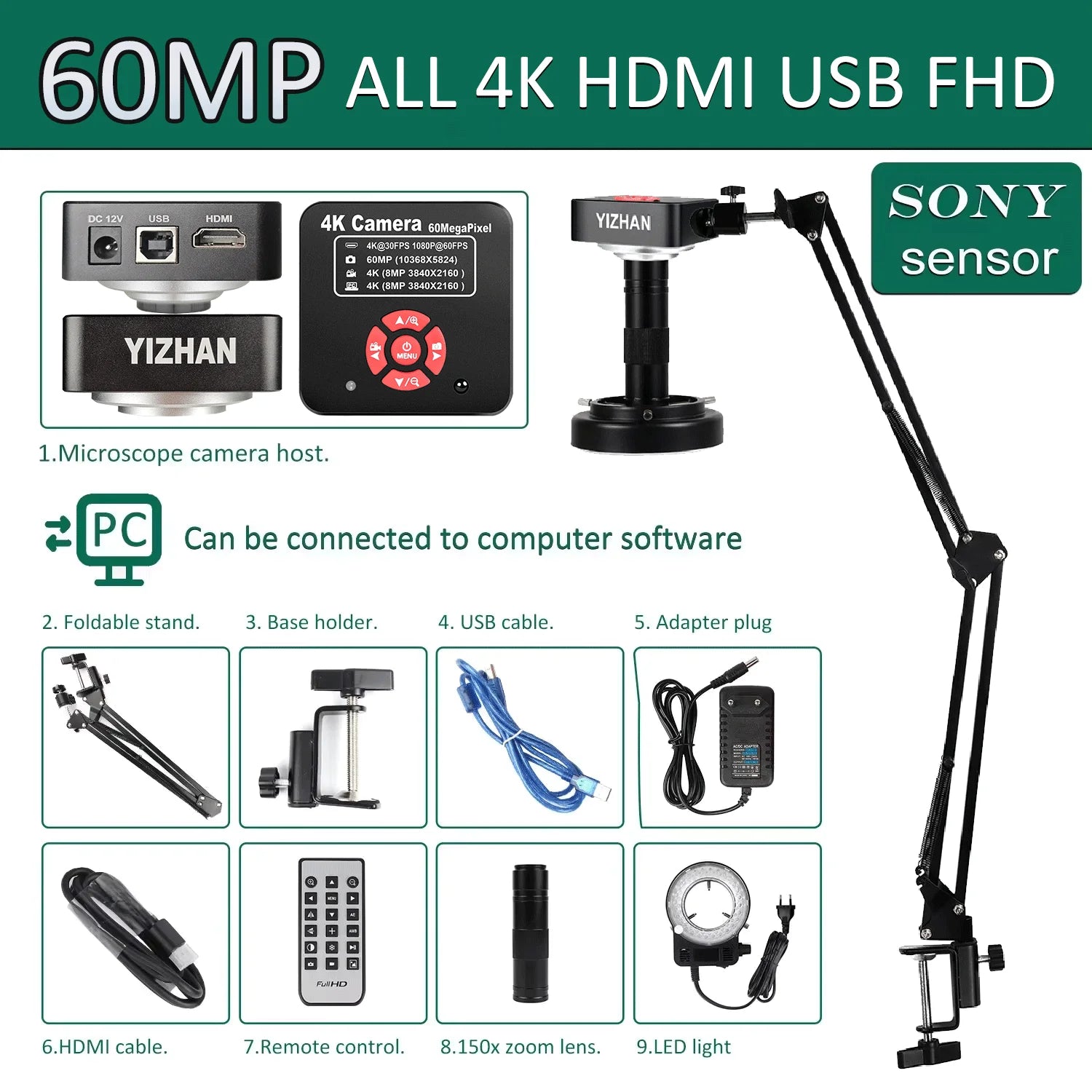

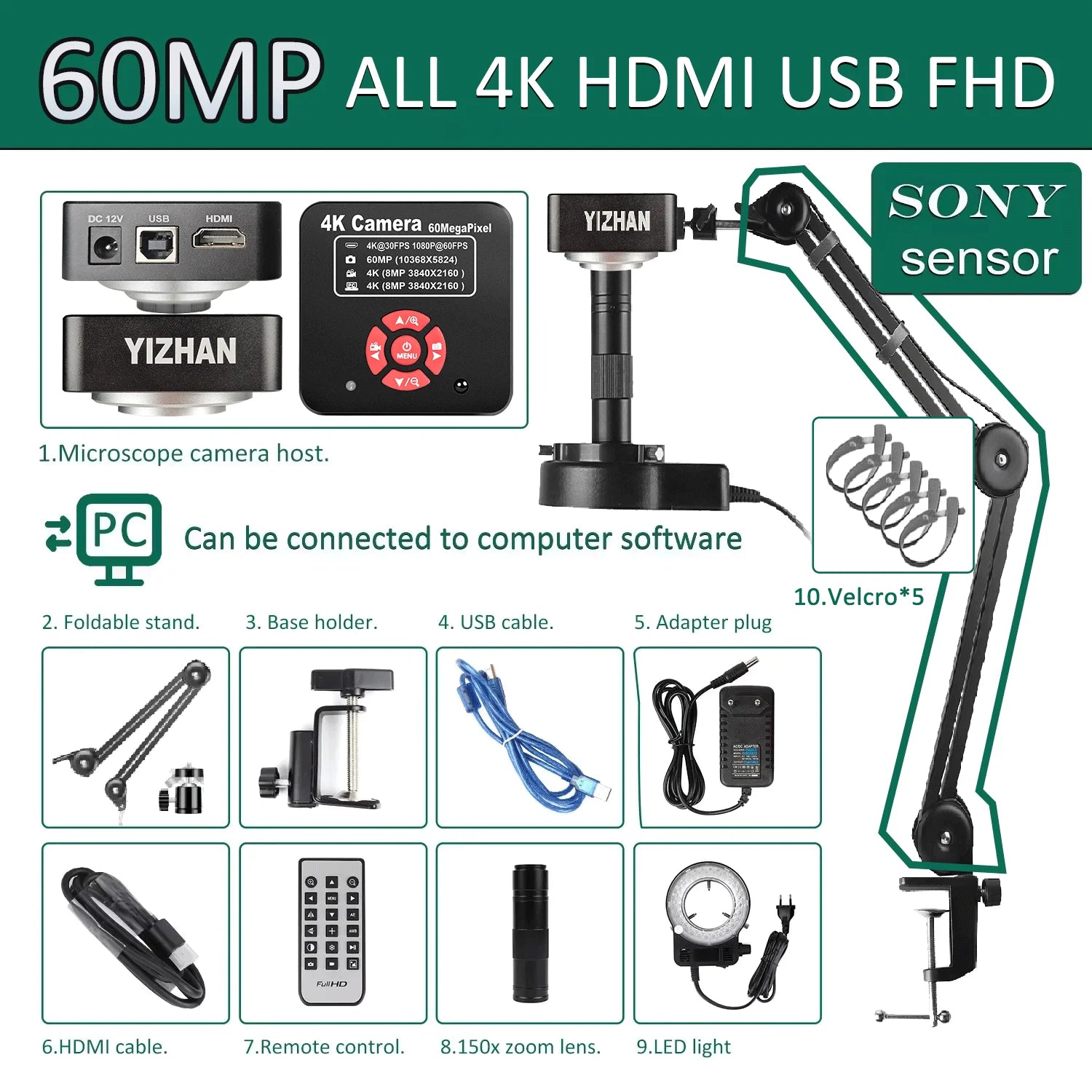

60MP Full 4K HDMI USB Camera

60MP 60FPS Sony Chip

Video Interface：HDMI USB-PC TF Card

Record：4K/1080p

Photo：Max 60MP(10368x5888)/4K

HDMI:4K/1080p

USB:4K/2K/1080p

Lens:CS

working voltage:12V

working current:190mA

optical format:1/2.7"

pixel size:1.5um*1.5um

scanning mode:progressive

shutter mode:electronic shutter"

dynamic range:69dB

S/N radio:40dB

OSD language:11 languages: Chinese/English/Traditional Chinese/Japanese/French/Spanish/German/Italian/Portuguese/Russian/Arabic

AWB mode:One-shot white balance/manual/auto

Cross:Support 4 groups: 32 horizontal and vertical lines

line:Color/line width adjustable"

B/W:√

negative:√

mirror flip:√

Freeze:√

Packing List of camera set:

1* Camera body

1* Power adapter

1* HDMI cables

1* USB cable

1* Remote control (no battery due to logistics requirements)

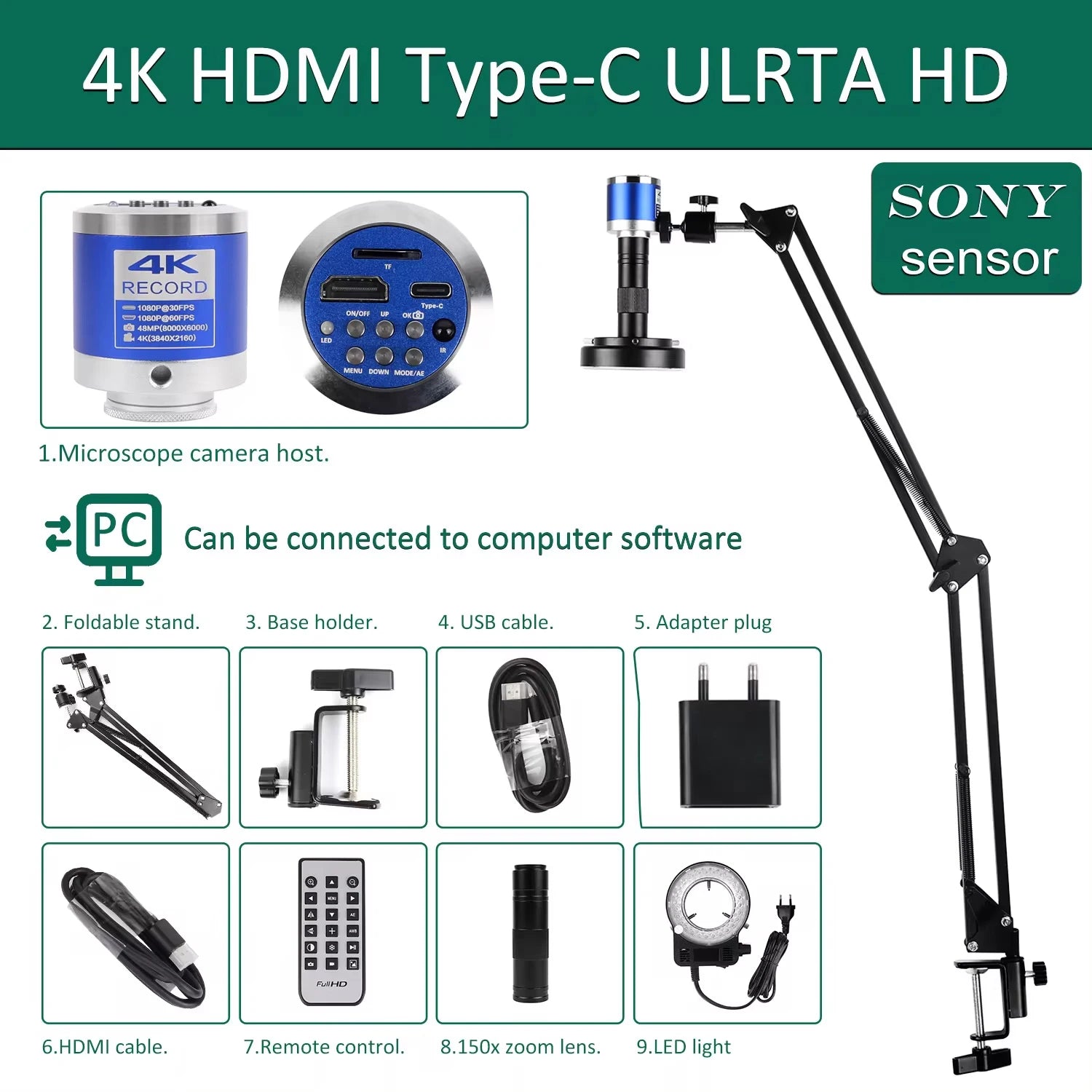

Full 4K Chip Upgrade Camera

◆Using Sony sensor; Chip Upgrade

◆Using a 1/2.8-inch image sensor, the viewing angle is wider than that of 1/3-inch;

◆HDMI 1080P 60 frames image output;

◆TYPE-C driver-free output 1080P 30 frames image output;

◆4K video recording;

◆48 million photos, JPG format;

◆One-click freeze/thaw function;

◆1080P video recording;

◆Electronic zoom function;

◆Supports manual/automatic exposure/one-click exposure, exposure compensation value adjustment;

◆Supports manual/automatic white balance/one-click white balance, red, green and blue are adjustable;

◆Provides 16 line functions, with adjustable line color, thickness and position;

◆Provide center crosshair display/off;

◆Support TF card storage, up to 64GB;

◆Support remote control operation, take pictures without shaking and the image will be clearer;

◆Support Chinese, Traditional Chinese, and English menu languages;

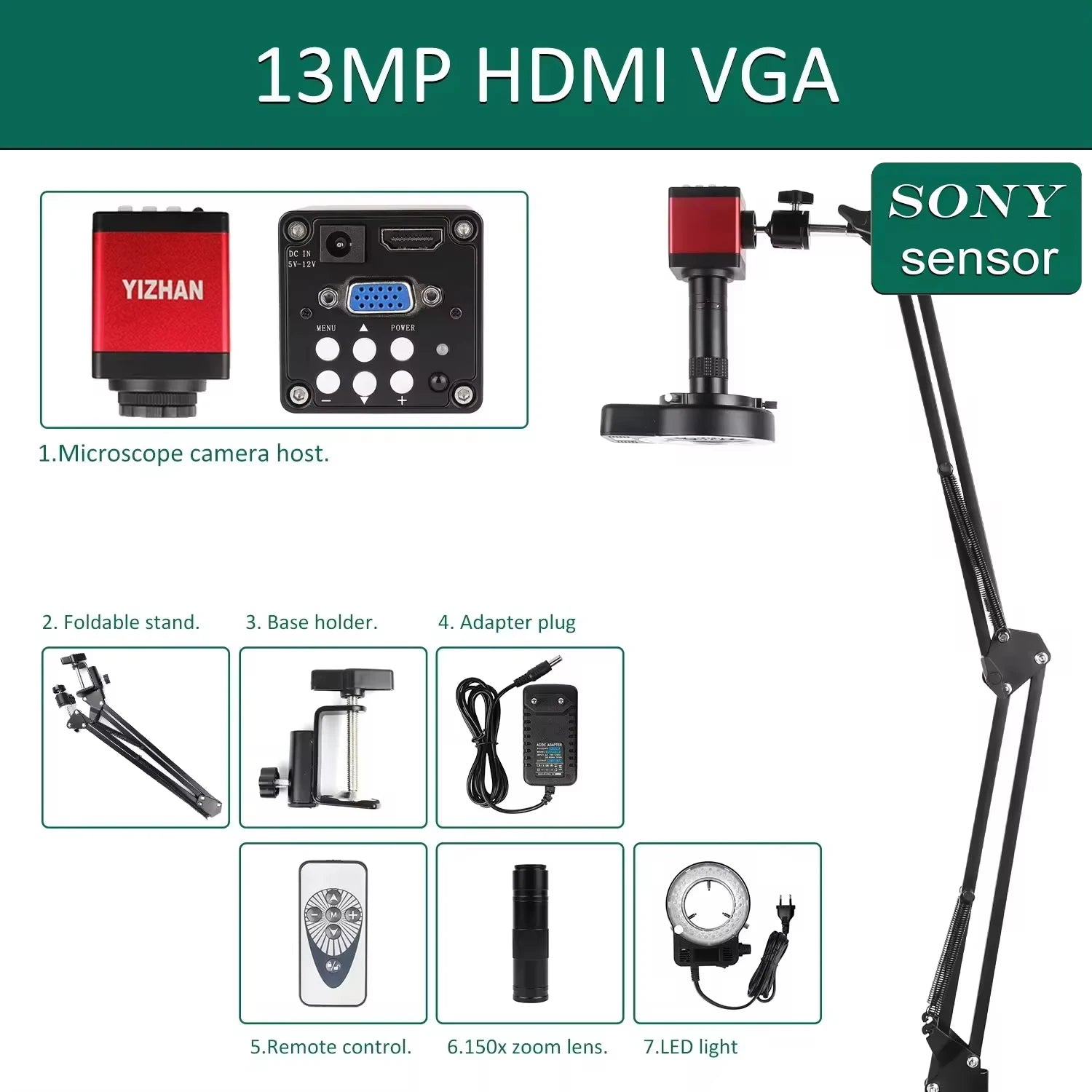

1080P HDMI VGA CAMERA

The sensor: Sony imx323

Pixel array:13MP

Overall dimension: 75*50*50mm

Video Interface:HDMI VGA

Lens:CS

Working voltage:12V

Working current:150mA

Optical format:1/3"

Pixel size:2.8um*2.8um

TV Lines:1200TVLine

FPS of max image:60FPS

Scanning mode:progressive

Shutter mode:electronic shutter

Dynamic range:65dB

S/N radio:45dB

OSD language:English, Spanish, Portuguese, Japanese, Russian, Italian, French, Arabic, Chinese

AWB mode:One time white balance / manual / auto

HDR:Adjustable

Cross line:Support 8 colors / line width adjustable

B/W:allow

Negative:allow

Mirror flip:Support left / right / up / down

Freeze:allow

Compare:allow

Manual set bright,contrast,sharp,saturation:allow

Output of display resolution: HDMI：16:9, 4:3 VGA:Above 1920*1080P
